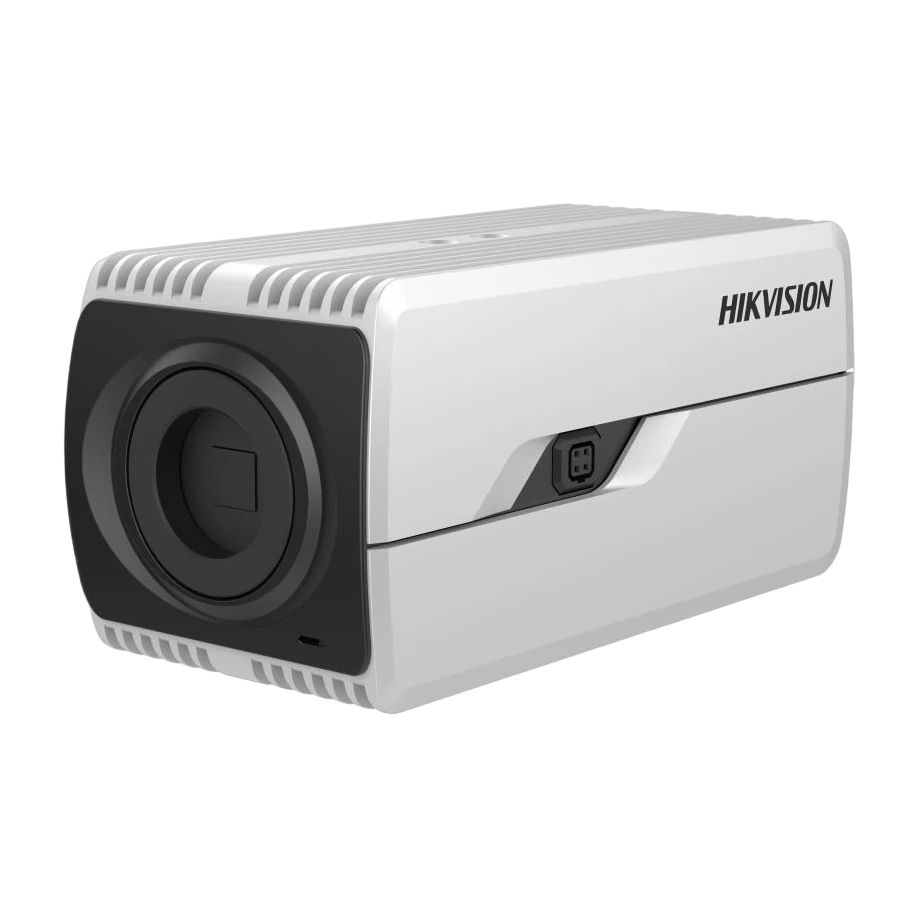

IDS-2CD70C6G2-AP Hikvision Box IP Camera
Product Overview
The Hikvision iDS-2CD70C6G2-AP is a 12MP DeepinView varifocal box IP camera designed for high-quality surveillance in demanding environments. It uses a 1/1.8″ progressive scan CMOS sensor with a maximum resolution of 4000 × 3000 and a 16:9 aspect ratio. For reliable imaging in challenging lighting, the camera supports DarkFighter 2.0 low-light performance and includes 120 dB AWDR to help deliver clear detail against strong backlight conditions.
For efficient recording and streaming, the camera supports multi-stream operation (up to 5 streams) and H.265+ compression technologies to help save bandwidth and storage. Advanced imaging features include day/night switching, BLC/HLC, 3D DNR, distortion correction and defog, plus electronic image stabilization (EIS). Video compression options include H.265+/H.265/H.264+ for main stream and additional codec options for sub and auxiliary streams.
The camera is equipped with a built-in microphone for real-time audio security and supports AI/deep learning functions for smart security applications. Deep learning features include face capture (best-shot/quick-shot), face comparison with encrypted face libraries, perimeter protection (line crossing, intrusion, region entrance/exit), and multi-target detection including face, human body and vehicle. It also supports people counting features such as queue management, regional people counting, heat map generation, PPE detection, and on/off duty detection, with metadata upload for key events.
The iDS-2CD70C6G2-AP supports network security capabilities, up to 20 channels of simultaneous live view, and ONVIF profiles (S/G/T/M).
Key Features
- 12MP (4000 × 3000) high-quality imaging, 16:9 aspect ratio
- DarkFighter 2.0 low-light performance
- 120 dB AWDR for clear imaging against strong backlight
- H.265+ compression technology to save bandwidth and storage
- Up to 5 streams for flexible application requirements
- Built-in microphone for real-time audio security
- Built-in G-sensor for vibration detection
- Built-in power meter for historical power statistics
- Deep learning: face capture (best shot and quick shot, dynamic mosaic mask)
- Face comparison with multiple encrypted face libraries
- Perimeter protection: line crossing, intrusion, region entrance/exit with filtering of false alarms
- Multi-target-type detection: face, human body, vehicle
- People counting: queue management, regional people counting, heat map, multi-dimension counting
- On/Off duty detection with absence and duty status detection
- PPE detection (hard hat and reflective clothing) with alarm triggers
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
The camera supports a maximum resolution of 4000 × 3000.
Yes. It supports DarkFighter 2.0 technology and has specified minimum illumination for color and B/W modes.
It supports 120 dB Wide Dynamic Range (WDR).
The main stream supports H.265+/H.265/H.264+/H.264.
Yes. It has a built-in microphone and supports mono sound audio.
It supports queue management and regional people counting, including heat map reporting and exception/waiting time based detection.
