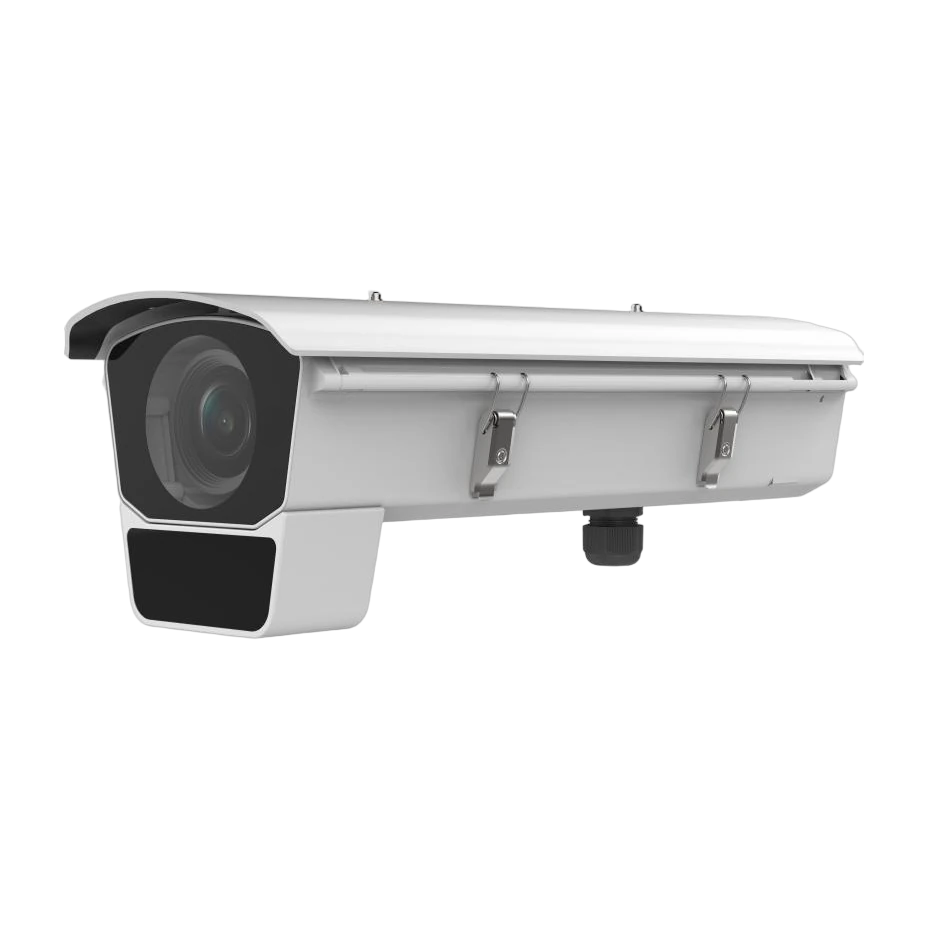

IDS-2CD70C6G2/E-IHSYR Hikvision Box IP Camera
Product Overview
The Hikvision iDS-2CD70C6G2/E-IHSYR is a 12MP DeepinView varifocal box IP camera with an integrated housing, designed for high-detail surveillance with advanced AI analytics. It uses a 1/1.8″ progressive scan CMOS sensor and supports a maximum resolution of 4000 × 3000 with a 16:9 aspect ratio. For low-light conditions, the camera features DarkFighter2.0 technology and IR supplementary illumination with an 850 nm wavelength. Wide dynamic range support (120 dB AWDR) helps maintain clear imaging against strong backlight. Video efficiency is improved with H.265+ compression and supports multiple streams (5) to fit different surveillance needs.
Built for outdoor reliability, the camera is water and dust resistant (IP66) and includes corrosion resistance with NEMA 4X (with -Y). Performance and detection are enhanced by embedded deep learning functions including Face Capture (best-shot and quick-shot capture modes), Perimeter Protection (line crossing, intrusion, region entrance/exit), Multi-target-type Detection (face, human body, vehicle), PPE Detection (hard hat and reflective clothing), and several people counting features such as queue management, regional people counting, and heat map reporting.
The camera supports advanced connectivity and security, including ONVIF profiles, encryption/TLS options, and network protocols commonly used in IP video systems. It also includes built-in storage support via a microSD slot up to 1 TB and built-in g-sensor and power meter for historical vibration and power statistics.
Key Features
- 12MP (4000 × 3000) resolution, 1/1.8″ progressive scan CMOS
- Varifocal motorized lens options: 3.8–16 mm and 11–40 mm (CS mount, P-iris)
- DarkFighter2.0 low-light technology
- 120 dB AWDR (wide dynamic range) for clear backlit scenes
- H.265+ compression to save bandwidth and storage
- 5 video streams support multiple applications
- Weather & corrosion resistance: IP66 and NEMA 4X (with -Y)
- Built-in G-sensor for vibration detection
- Built-in power meter for historical power statistics
- AI functions: Face Capture, Perimeter Protection, Multi-target-type Detection
- PPE detection (hard hat and reflective clothing) with alarms
- People counting: queue management, regional people counting, heat map
- H.265/H.264/MJPEG support with up to 20-channel simultaneous live view
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
The maximum resolution is 4000 × 3000 (12MP).
It uses DarkFighter2.0 technology.
Yes. It supports 120 dB AWDR (Wide Dynamic Range).
It supports H.265+/H.265/H.264+ / H.264 (and MJPEG for some streams).
It is IP66 water and dust resistant and has corrosion resistance with NEMA 4X (with -Y).
Examples include Face Capture, Perimeter Protection (line crossing, intrusion, region entrance/exit), PPE detection, and multiple people counting/queue management features.
