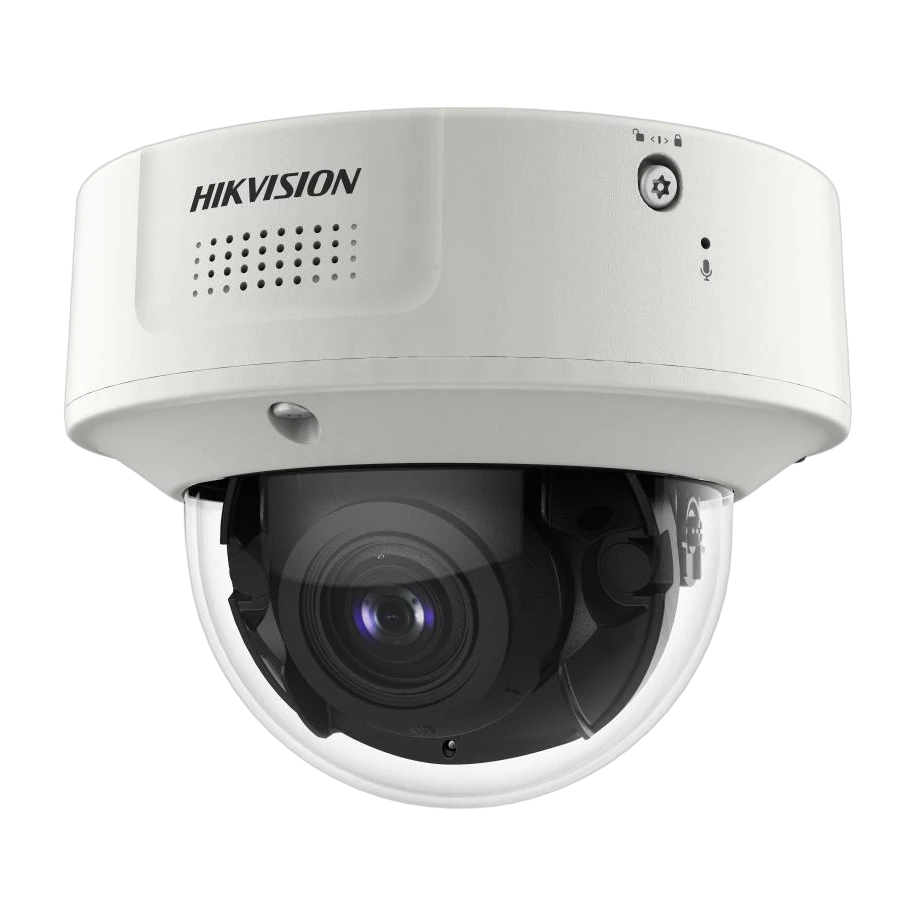

IDS-2CD7146G2-IZ(H)S(Y)(1T) Hikvision Dome IP Camera
Product Overview
The Hikvision iDS-2CD7146G2-IZ(H)S(Y)(1T) DeepinView Moto varifocal dome network camera delivers 4MP high-quality imaging with advanced low-light performance and powerful onboard analytics. Designed for security-by-design, it integrates multiple cyber and data protection measures and supports secure, modern network protocols.
Featuring a 1/1.8″ progressive scan CMOS sensor, the camera offers up to 2688×1520 maximum resolution and motorized varifocal lens options (2.8 to 12 mm and 8 to 32 mm variants). In challenging lighting, it uses DarkFighter 2.0 technology for excellent low-light results and incorporates IR illumination at 850 nm. Wide Dynamic Range (WDR 150 dB) helps provide clear imaging against strong backlight conditions.
For bandwidth efficiency, H.265+ compression supports reduced bitrate and storage requirements, with multi-stream output (up to five streams) to match different application needs. The camera also supports high frame rates up to 4MP@60fps and, under monitoring mode, up to 2MP@120fps.
Deep-learning powered functions include face capture and comparison, perimeter protection (line crossing, intrusion, region entrance/exiting), multi-target detection (face/human/vehicle), queue management, people counting and regional people counting, heat map visualization, and PPE detection (hard hat and reflective clothing). A built-in dual-mic and speaker enable real-time audio security. Optional 1 TB edge storage (with model variant supporting -1T) and built-in G-sensor support vibration detection for enhanced site reliability.
Key Features
- 4MP high-quality imaging (2688×1520)
- DarkFighter 2.0 low-light performance
- Moto varifocal lens (motorized), 2.8–12 mm or 8–32 mm optional (variant dependent)
- WDR 150 dB for strong backlight scenes
- H.265+ compression to save bandwidth and storage
- Up to 5 streams for flexible deployment
- High frame rates up to 4MP@60fps (and up to 2MP@120fps under monitoring mode)
- Deep-learning: Face Capture (up to 120 faces simultaneously; best shot/quick shot modes)
- Face Comparison with multiple libraries (up to 10 libraries; 150,000 faces total)
- Perimeter Protection: line crossing, intrusion, region entrance, region exiting
- Multi-target-type detection: face, human body, vehicle (region-based)
- People Counting and Regional People Counting with deduplication
- Queue Management with waiting-time detection and report generation
- Heat Map (space heat map and time heat map line chart)
- PPE detection (hard hat and reflective clothing)
- Built-in dual-mic and speaker for real-time audio security
- Edge storage: built-in 1 TB SSD (optional/variant -1T)
- Weather and durability ratings: IP67, IK10; optional corrosion resistance NEMA 4X (-Y)
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
The camera supports up to 2688×1520 (4MP).
Yes. It uses IR illumination (850 nm) and DarkFighter 2.0 technology for excellent low-light performance.
WDR 150 dB.
It supports face capture and comparison, perimeter protection (line crossing/intrusion/region entrance/region exiting), people counting, queue management, heat maps, and PPE detection.
It supports up to 5 streams.
Yes. A built-in 1 TB SSD is available as an option/variant (with -1T).
