IDS-2CD7186G2-IZ(H)S(Y) Hikvision Dome IP Camera
Product Overview

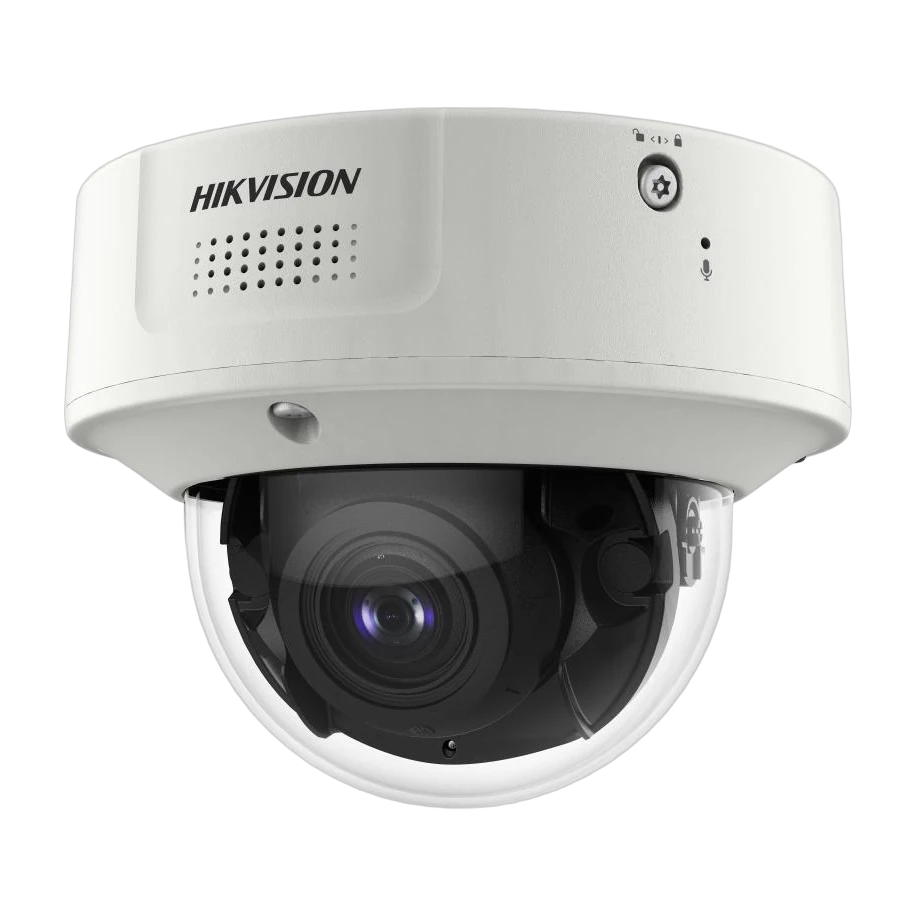

The Hikvision iDS-2CD7186G2-IZ(H)S(Y) DeepinView series 8 MP network dome camera is designed for high-quality imaging, smart detection, and reliable outdoor performance. It features an 1/1.8″ progressive scan CMOS sensor with a maximum resolution of 3840 × 2160, delivering strong detail for perimeter security and access control applications. With DarkFighter 2.0 technology and a dedicated IR illuminator (850 nm), the camera supports low-light monitoring, including 8MP up to 60 fps and 2MP up to 120 fps (monitoring mode).
For challenging lighting conditions, it includes 140 dB AWDR to help maintain clarity against strong backlight. A motorized varifocal lens is available in configurations from 2.8 to 12 mm or 8 to 32 mm, providing flexible field of view selection. To reduce storage and bandwidth usage, the camera supports efficient H.265+ compression and multiple streaming (5 streams).
Beyond imaging, the embedded deep learning capabilities enable face capture and comparison, perimeter protection (line crossing, intrusion, region entrance/exit), multi-target-type detection (face, human body, vehicle), and advanced people counting features such as queue management, regional people counting with density and waiting-time exception alerts, and heat map reporting. Audio security is supported with a built-in dual-mic and speaker for real-time audio. The camera is rated IP67 and IK10 for water/dust resistance and vandal protection, with optional anti-corrosion support (NEMA 4X for -Y models).
Key Features
- 8 MP (3840 × 2160) high-quality imaging
- DarkFighter 2.0 low-light performance
- Moto varifocal motorized lens (2.8 to 12 mm or 8 to 32 mm optional)
- 140 dB AWDR for clear imaging against strong backlight
- H.265+ compression to save bandwidth and storage
- Up to 5 streams
- 5 TOPS computing power and HEOP 2.0 OpenDevSDK open capability
- Face Capture with best shot and quick shot; detects up to 120 faces simultaneously
- Face comparison with face libraries (up to 10 libraries; 30,000 faces each; 150,000 total)
- Perimeter Protection: line crossing, intrusion, region entrance, region exiting
- Multi-target-type detection: face, human body, vehicle
- Queue Management and Regional People Counting (up to 8 detection regions)
- Heat Map reporting (space heat map and time heat map line chart)
- PPE detection (detect hard hat and reflective clothing; alarm when not worn)
- Dual-mic and speaker for real-time audio security
- Built-in G-sensor for vibration detection
- Built-in power meter for historical power statistics
- IR illuminator 850 nm; monitoring range stated as 40 m (wide) / 60 m (tele)
- IP67, IK10; optional NEMA 4X anti-corrosion protection (-Y model)
- Frame rates up to 8MP@60fps and 2MP@120fps (monitoring mode)
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
The camera supports a maximum resolution of 3840 × 2160 (8 MP).
Yes. It uses DarkFighter 2.0 technology and an IR illuminator (850 nm) with stated monitoring range up to 60 m (tele).
A motorized varifocal lens is available as 2.8 to 12 mm or 8 to 32 mm options.
It includes 140 dB AWDR technology for clear imaging against strong backlight.
The camera supports Face Capture/Comparison, Perimeter Protection (line crossing, intrusion, region entrance/exit), Multi-Target-Type Detection (face, human body, vehicle), queue management, regional people counting, and PPE detection.
Yes. It is rated IP67 (water and dust resistant) and IK10 (vandal proof), and optional corrosion resistance (NEMA 4X) is available for -Y models.
