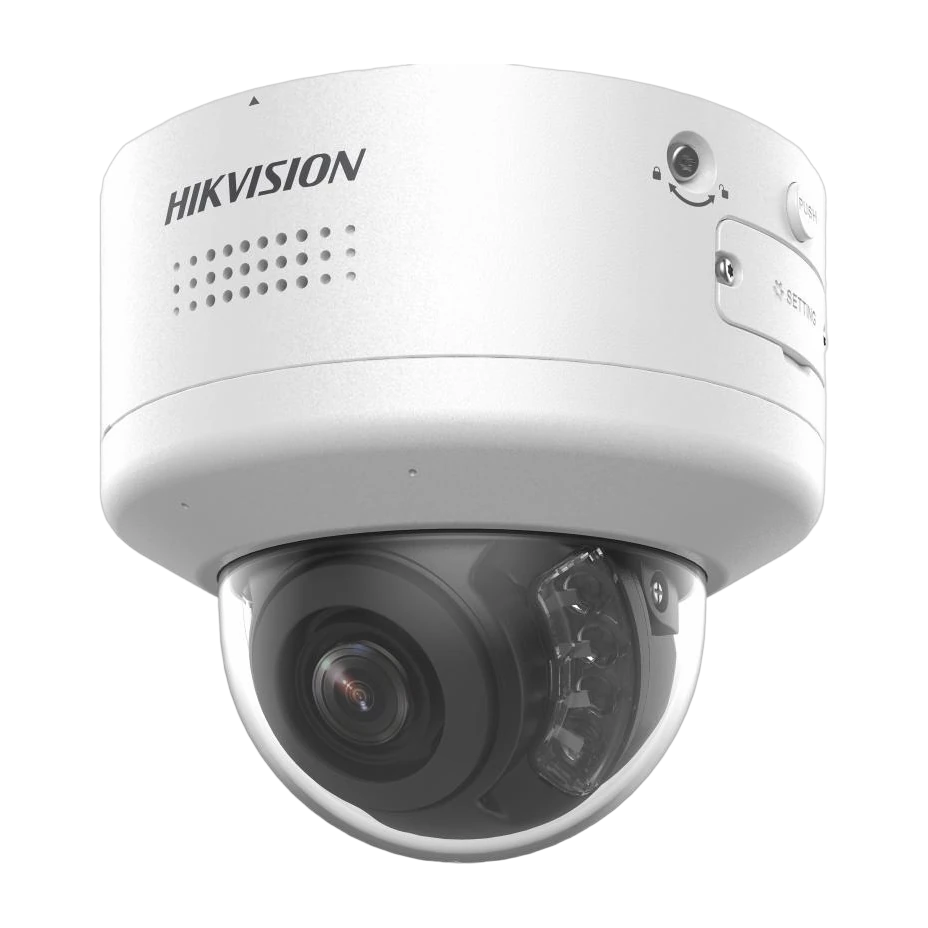

IDS-2CD7546G2-XZHS(Y) Hikvision Dome IP Camera
Product Overview
The Hikvision iDS-2CD7546G2-XZHS(Y) DeepinView PTZ moto varifocal dome network camera delivers 4 MP resolution with strong image performance for security and analytics. Designed for low-light scenes, it uses DarkFighter 2.0 technology to improve visibility in dark environments. For challenging lighting conditions, it features 150 dB AWDR to help produce clear images against strong backlight.
The camera supports efficient video compression using H.265+ to save bandwidth and storage, and offers up to five simultaneous video streams to match different recording and application needs. High frame rates are available under monitoring mode, with up to 4 MP at 60 fps and 2 MP at 120 fps.
For intelligent applications, the built-in deep learning functions enable face capture (detect, grade and select best shots), multi-target-type detection (face, human body, vehicle), and advanced people counting including multi-dimension people counting plus deduplication based on face features. Queue management provides queuing-up people number and waiting time analytics with reporting and raw data export. Perimeter protection supports line crossing, intrusion, and region entrance/exit detection with smart filtering to reduce mistaken alarms.
For hardware robustness and installation flexibility, the dome is rated IP67 (water and dust resistant) and IK10 (vandal resistant), with optional corrosion protection (NEMA 4X, -Y model). It also includes a unique PTRZ capability for efficient installation and configuration, built-in G-sensor vibration detection, and power monitoring for historical statistics.
Key Features
- 4 MP (2688 × 1520) progressive scan CMOS sensor
- DarkFighter 2.0 low-light imaging technology
- 150 dB AWDR for clear imaging against strong backlight
- Varifocal motorized lens options: 2.8 to 12 mm or 8 to 32 mm
- Motorized PTRZ for efficient installation and configuration
- Pan: 0° to 355°, Tilt: 0° to 85°, Rotate: 0° to 355°
- High frame rate up to 4 MP @ 60 fps (monitoring mode) and 2 MP @ 120 fps
- H.265+ / H.265 / H.264 video compression for bandwidth and storage savings
- Up to 5 streams (up to 20 channels simultaneous live view)
- Deep learning: best-shot face capture with face grading and selection
- Deep learning: multi-target-type detection (face, human, vehicle)
- Perimeter protection: line crossing, intrusion, region entrance, region exiting (human and vehicle)
- Multi-dimension people counting with face deduplication
- Queue management with queuing-up number and waiting time analytics + reports
- Heat map (space and time heat map line chart)
- Face comparison: up to 10 libraries, up to 30,000 faces each (150,000 total)
- Hard hat detection and PPE detection (hard hat and reflective clothing)
- Water and dust resistant IP67, vandal proof IK10; optional anti-corrosion NEMA 4X (-Y model)
- Built-in G-sensor for vibration detection
- Built-in power meter for historical power statistics
- Built-in microphones (2) and built-in speaker (1)
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
The maximum resolution is 2688 × 1520 (4 MP).
Yes. It uses DarkFighter 2.0 technology for excellent low-light performance.
It supports 150 dB AWDR.
Under monitoring mode: up to 4 MP @ 60 fps and up to 2 MP @ 120 fps.
H.265+/H.265/H.264+ / H.264 are supported, with different settings per stream.
Yes, it is an IP network camera. It is rated IP67 and IK10.
