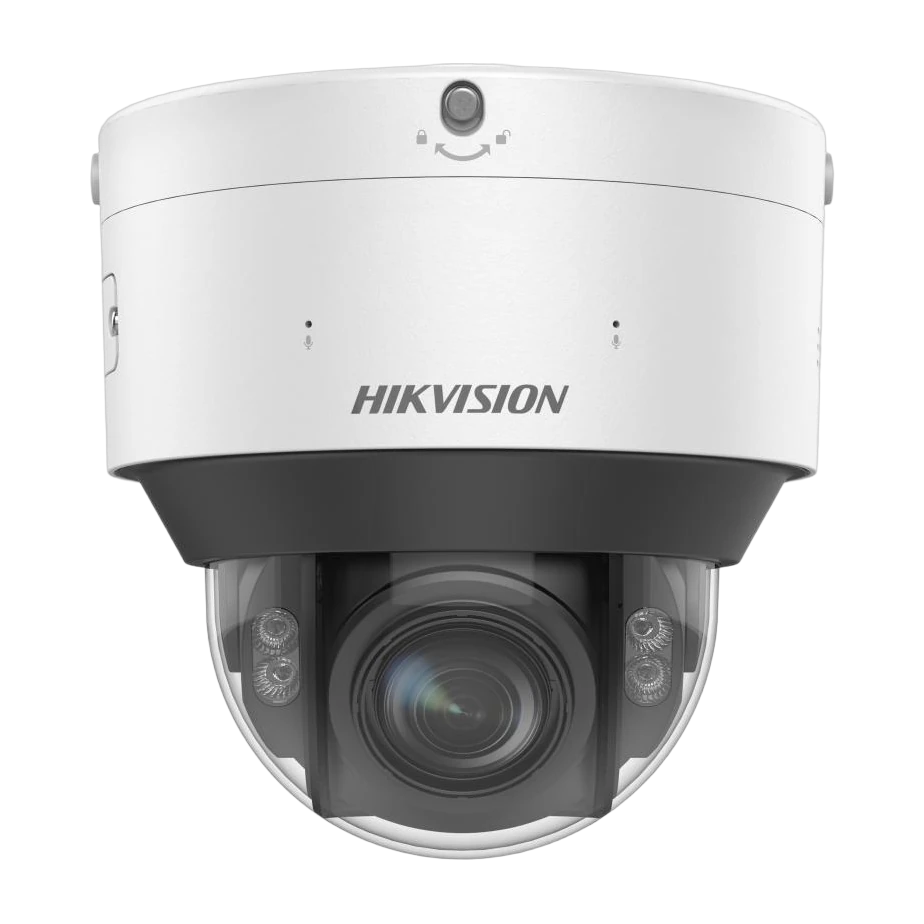

IDS-2CD7547G0/P-XZHS(Y) Hikvision Dome IP Camera
Product Overview
The Hikvision iDS-2CD7547G0/P-XZHS(Y) is a 4 MP DeepinView ANPR varifocal IP dome camera built for perimeter protection, road traffic monitoring, and parking management. It features a 1/1.8″ progressive scan CMOS sensor with a maximum resolution of 2688 × 1520, delivering high-quality detail for identification tasks. For low-light performance, the camera uses DarkfighterS technology and an 850 nm IR illumination system with smart supplemental light support.
To improve image clarity in challenging lighting, it incorporates a 140 dB true WDR feature and supports multiple image enhancement functions such as BLC, HLC, 3D DNR, defog, and EIS (electronic image stabilization). The camera offers an efficient multi-stream architecture with up to five streams, enabling flexible bandwidth management and compatibility with a wide range of applications.
DeepinView deep learning functions are built in for line crossing, intrusion, region entrance/exit, and road traffic events, with alarm triggering refined by target-type filtering (human and vehicle). In ANPR scenarios (checkpoint mode), the camera supports license plate recognition for vehicles and motorcycles, including vehicle attribute detection and configurable blocklist/allowlist for plate categorization. Parking management supports both distant view and close view modes, including vacant space alarms and close-view license plate recognition. Designed for harsh environments, the camera is IP67 water/dust resistant and IK10 vandal resistant, with unique PTRZ capability to simplify installation.
Key Features
- 4 MP (2688 × 1520) 1/1.8″ progressive scan CMOS
- DarkfighterS low-light performance with 850 nm IR (Hybrid IR/White light)
- 140 dB true WDR for clear backlight imaging
- Varifocal lens: 2.8 to 12 mm (horizontal FOV 104.2° to 44.1°)
- Deep learning: perimeter protection (line crossing, intrusion, region entrance/exiting)
- Road traffic & vehicle detection with deep learning road traffic metadata
- ANPR in checkpoint scenario: license plate capture and recognition
- Blocklist/allowlist for plate categorization (up to 10,000 records)
- Parking management: distant view (up to 40 spaces) and close view (up to 4 spaces)
- Close view mode supports license plate recognition
- Efficient compression: H.265+ on main stream
- Multi-stream support: 5 streams
- PT(R)TZ capability for efficient installation
- IP67 and IK10 vandal resistance
- Built-in microSD/microSDXC slot (up to 1 TB)
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search now
Frequently Asked Questions
It supports a maximum resolution of 2688 × 1520 (4 MP).
Yes. It supports license plate recognition of vehicles and motorcycles in a checkpoint scenario.
Line crossing, intrusion, region entrance, and region exiting with alarm triggering by specified target types.
It supports distant view mode (up to 40 parking spaces) and close view mode (up to 4 parking spaces), including vacant parking space alarms; close view mode also supports license plate recognition.
The camera supports 140 dB true WDR.
It is IP67 water and dust resistant and IK10 vandal proof.
