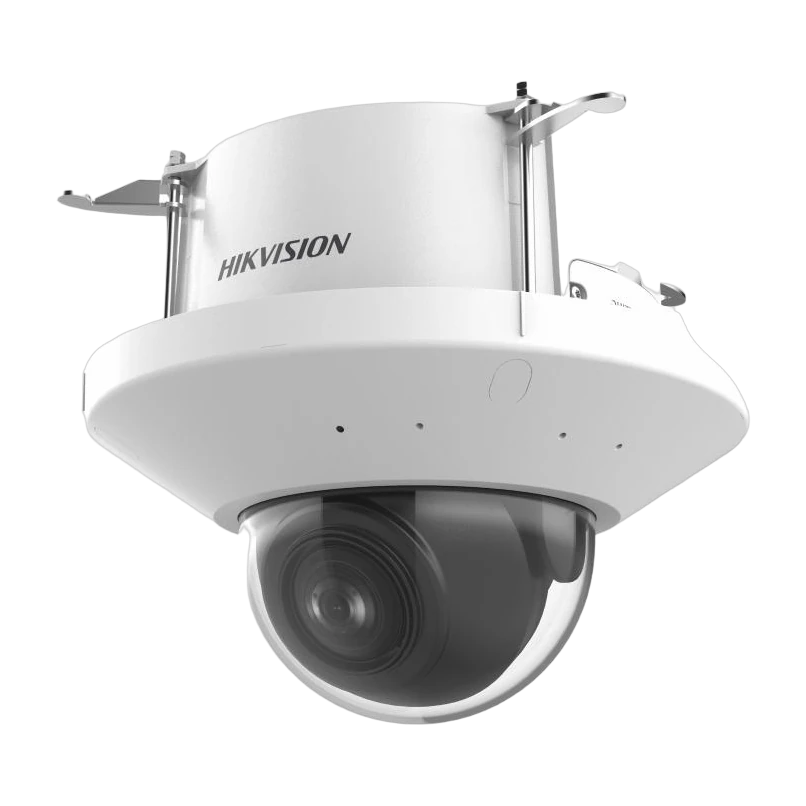

IDS-2CD7547G2-ZHS/RC Hikvision Dome IP Camera
Product Overview
The Hikvision iDS-2CD7547G2-ZHS/RC is a 4MP DeepinView DarkFighter 2.0 PTRZ (Pan/Tilt/Rotate & Zoom) dome IP network camera designed for efficient installation and reliable long-term operation. It features a 1/1.8″ progressive scan CMOS sensor with max resolution of 2688 × 1520, delivering high-quality imaging in both daylight and challenging lighting conditions. DarkFighter 2.0 technology provides excellent low-light performance, while 150 dB true WDR ensures clear imaging against strong backlight.
The camera supports H.265+ compression to save bandwidth and storage, and provides 5 video streams to match different application needs. High frame rates are available up to 4MP @ 60 fps (and 2MP @ 120 fps). For robust alerts and analytics, the device includes embedded deep learning functions such as face capture (best shot/quick shot), perimeter protection (line crossing, intrusion, region entrance/exit), multi-target-type detection (face/human/vehicle), and multiple people counting modes (regional people counting, queue management, heat map).
For protection and durability, it is rated IP67 for water and dust resistance and IK10 for vandal resistance. Hardware features include a built-in G-sensor for vibration detection, built-in power meter for historical power statistics, and a microSD slot (up to 1 TB) for on-board storage. With PTRZ capability and recessed ceiling mount design, it is well-suited for indoor perimeter monitoring, entrances, and queue management scenarios.
Key Features
- 4 MP high quality imaging (max 2688 × 1520)
- DarkFighter 2.0 low-light performance
- H.265+ compression for efficient bandwidth and storage
- 150 dB true WDR for clear images in strong backlight
- 5 streams
- Water and dust resistant IP67 and vandal proof IK10
- High frame rate up to 4MP@60fps and 2MP@120fps
- Built-in G-sensor for vibration detection
- Built-in power meter for historical power statistics
- Unique PTRZ capability (Pan 0° to 355°, Tilt 0° to 75°, Rotate 0° to 355°)
- Specially designed for recessed inceiling mount
- Embedded deep learning: Face capture and best-shot/quick-shot modes
- Perimeter protection: line crossing, intrusion, region entrance, region exiting (with filtering of common false alarms)
- Multi-target-type detection: face, human body, vehicle
- Queue management: people number and waiting time with reporting and raw data export
- Regional people counting: density, exceptions, waiting time exceptions; supports uploading and exception detection
- On/Off duty detection and absence detection
- Heat map (space heat map and time heat map line chart)
- PPE detection (hard hat and reflective clothing) and alarm if not worn
- Built-in microphone (2 built-in microphones) and audio I/O support
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
It supports a maximum resolution of 2688 × 1520 (4MP).
It uses DarkFighter 2.0 technology for excellent low-light performance, with stated minimum illumination values for color and B/W modes.
Yes. It features 150 dB true WDR.
The main stream supports H.265+/H.265/H.264+/H.264, and other streams support H.265/H.264/MJPEG (as listed by stream).
It is rated IP67 for water/dust resistance and IK10 for vandal resistance.
The datasheet lists embedded deep learning features such as face capture, perimeter protection (line crossing/intrusion/region entrance/region exiting), multi-target detection, queue management, regional people counting, heat map, on/off duty detection, and PPE detection.
