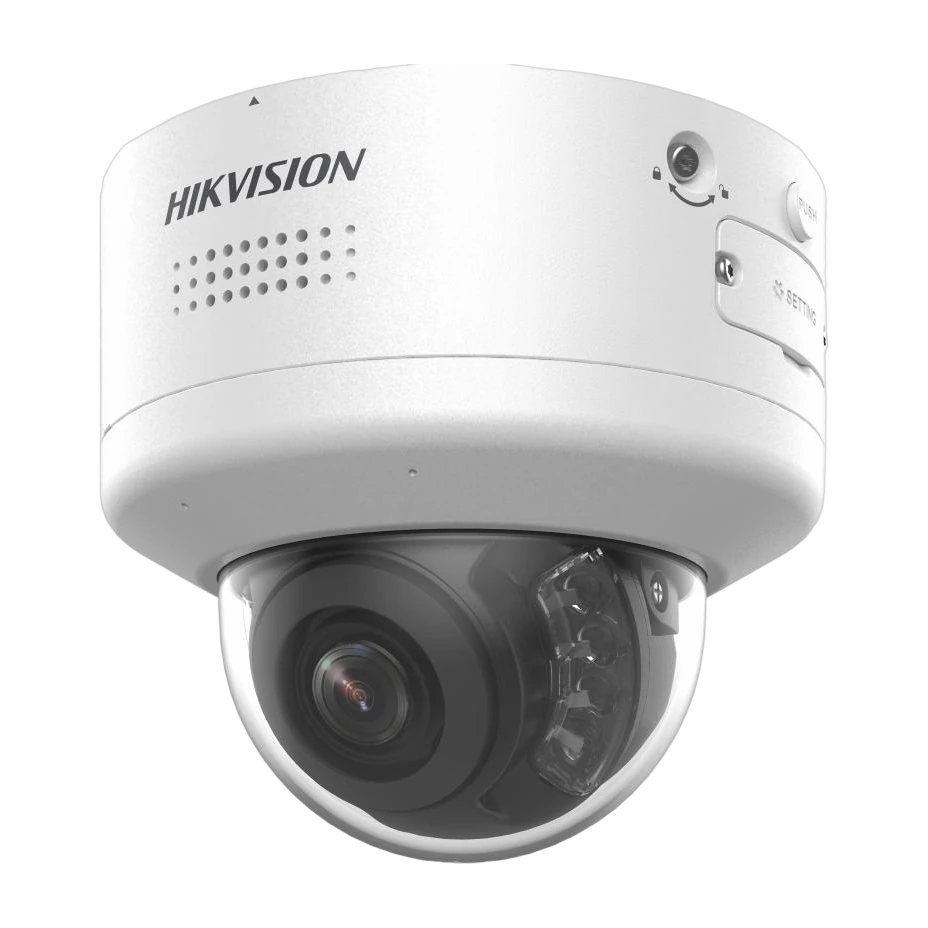

IDS-2CD7586G2-XZHS(Y) Hikvision Dome IP Camera
Product Overview
The Hikvision iDS-2CD7586G2-XZHS(Y) is an 8MP DeepinView PTZ dome IP camera designed for advanced perimeter monitoring and smart video analytics. Powered by a built-in AI platform (up to 5 TOPS) with HEOP 2.0 OpendevSDK, it supports deep learning functions including multi-target detection, face capture, and face comparison using on-device deep learning. With a motorized varifocal lens option (2.8 to 12 mm or 8 to 32 mm) and PTRZ capability (Pan/tilt/rotate/zoom), installation and configuration are streamlined for changing scene requirements.
For challenging lighting environments, the camera features DarkFighter 2.0 for excellent low-light performance and 140 dB AWDR to maintain clear imaging against strong backlight. It also provides efficient H.265+ compression and multi-stream support (up to 5 streams) to optimize bandwidth and storage. Performance is supported by high frame rates up to 8MP@60fps (monitoring mode), enabling smoother capture of fast-moving subjects.
Designed for demanding outdoor environments, the camera offers IP67 water and dust resistance, IK10 vandal resistance, and optional anti-corrosion protection (NEMA 4X for -Y models). Smart features extend to people counting, queue management, on/off duty detection, heat map reporting, and hard hat detection, supporting real-time alarms and scheduled data/report uploads.
Key Features
- 8MP (3840 × 2160) max resolution
- DeepinView PTZ dome with motorized varifocal lens (2.8–12 mm and 8–32 mm options)
- DarkFighter 2.0 low-light performance
- 140 dB AWDR for clear imaging in strong backlight
- H.265+ compression for bandwidth and storage saving
- Up to 5 streams for flexible deployments
- PTRZ (Pan/Tilt/Rotate/Zoom) capability for efficient installation and configuration
- High frame rate: up to 8MP@60fps and 2MP@120fps (monitoring mode)
- Face Capture (best shot/quick shot, dynamic face exposure, background/close-up uploads)
- Face Comparison with multiple encrypted face libraries (up to 10 libraries, up to 150,000 faces total)
- Perimeter Protection (line crossing, intrusion, region entrance, region exiting) with target-type filtering
- Multi-target-type Detection (face, human body, vehicle in specified regions)
- People Counting and Multi-Dimension People Counting with deduplication
- Queue Management with queue status reporting and raw data export
- Regional People Counting with exception detection and configurable alarm rules
- Heat Map (space heat map and time heat map line chart)
- Hard Hat Detection (alarm when not wearing)
- On/Off Duty Detection (absence and on/off duty status)
- PPE detection (hard hat and reflective clothing) and activity analysis (smoking/phone calls)
- Built-in G-sensor for vibration detection
- Built-in power meter for historical power statistics
- IP67, IK10, and optional NEMA 4X anti-corrosion (-Y)
- IR and white light supplement (smart supplement light; 850 nm IR)
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
The camera supports up to 3840 × 2160 (8MP).
Yes. It uses DarkFighter 2.0 technology and provides very low minimum illumination with IR.
It supports 140 dB AWDR (Wide Dynamic Range).
Functions include Face Capture/Face Comparison, Perimeter Protection, Multi-target-type Detection, People Counting, Queue Management, Regional People Counting, Heat Map, On/Off Duty Detection, and Hard Hat Detection.
It is rated IP67 for water/dust resistance and IK10 for vandal resistance. Optional -Y model support includes anti-corrosion protection (NEMA 4X).
It supports H.265+ compression and also provides multiple streams (up to 5) for different application needs.
