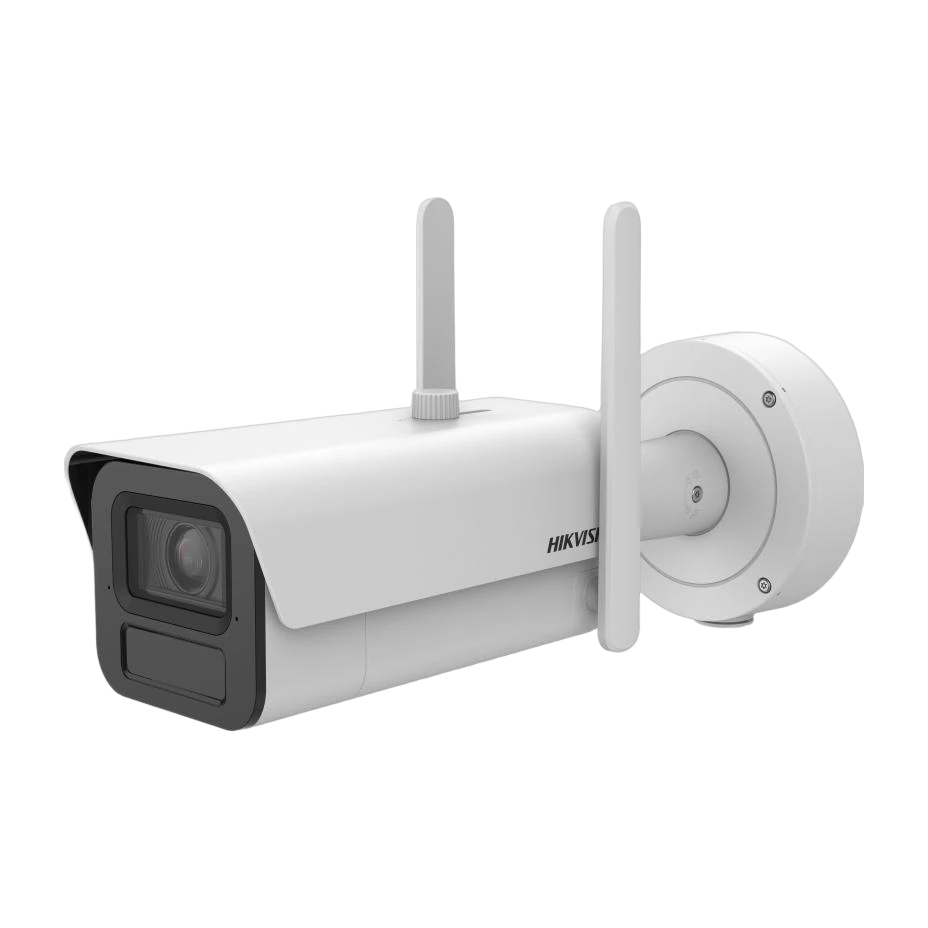

IDS-2CD7A46G2-IZHS(Y)/4G Hikvision Bullet IP Camera
Product Overview
The Hikvision iDS-2CD7A46G2-IZHS(Y)/4G is a 4MP DeepinView Moto Varifocal bullet IP network camera designed for advanced perimeter and people-focused analytics. Built around a 1/1.8″ progressive scan CMOS sensor with a max resolution of 2688 × 1520, it supports variable focal lengths from 2.8 to 12 mm, 8 to 32 mm, or 10 to 50 mm (depending on the lens configuration), delivering flexible coverage from wide to long range views.
For challenging lighting, the camera combines DarkFighter 2.0 low-light performance with 150 dB AWDR for clear imaging in high-contrast scenes and strong backlight. It also includes an IR supplement light with 850 nm illumination and a built-in heater for reliable operation in rainy or snowy conditions. Performance is efficient thanks to H.265+ video compression and multi-stream support (five streams) for different application needs.
On the intelligent side, the camera includes face capture, perimeter protection (line crossing, intrusion, region entrance/exit), multi-target detection (face/human/vehicle), and dedicated people counting features such as queue management, regional people counting, heat maps, and on/off duty detection. It also supports PPE detection (hard hat and reflective clothing) and integrates deep learning features for metadata output to enhance analytics workflows.
Designed for rugged deployments, it is rated IP67 and IK10 with options for additional anti-corrosion protection (NEMA 4X, model-dependent).
Key Features
- 4MP high quality imaging (max 2688 × 1520)
- DarkFighter 2.0 low-light performance
- 150 dB AWDR for clear imaging against strong back light
- H.265+ compression for efficient bandwidth and storage
- 5 streams to meet a wide variety of applications
- IP67 water and dust resistant, IK10 vandal proof
- Corrosion resistant options: NEMA 4X (optional)
- ShotN technology for capturing humans and vehicles at different speeds
- High frame rate: up to 2MP@120fps and 4MP@60fps (monitoring mode only)
- Built-in heater for rainy/snowy weather
- Built-in G-sensor for vibration detection
- Built-in power meter for historical power statistics
- Face Capture (detect/capture/grading/selecting best shot)
- Perimeter Protection (line crossing, intrusion, region entrance, region exiting)
- Queue Management (people number and waiting time; reports and raw export)
- Regional People Counting (density, exception detection, waiting time exception; uploads and reports)
- On/Off Duty Detection (absence and on/off duty status detection)
- Heat Map (space and time heat map outputs)
- Multi-Dimension People Counting with deduplication via face comparison
- PPE Detection (hard hat and reflective clothing detection)
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
The camera supports a maximum resolution of 2688 × 1520 (4MP).
It uses DarkFighter 2.0 for excellent low-light performance.
Yes. It supports Wide Dynamic Range (WDR) of 150 dB (AWDR).
The supplement light type is IR, with IR wavelength 850 nm.
Yes. It is rated IP67 for water/dust resistance and IK10 for vandal resistance.
It includes queue management, regional people counting (including density/exception and waiting time exception), on/off duty detection, and heat map reporting.
