IDS-2CD7A47G0-XZHS(Y) Hikvision Bullet IP Camera

SKU: IDS-2CD7A47G0-XZHS-Y- Category:
4MP
Resolution
DarkFighter
Night Vision
50m
Night Vision Range
IP Camera
Device Type

Product Overview

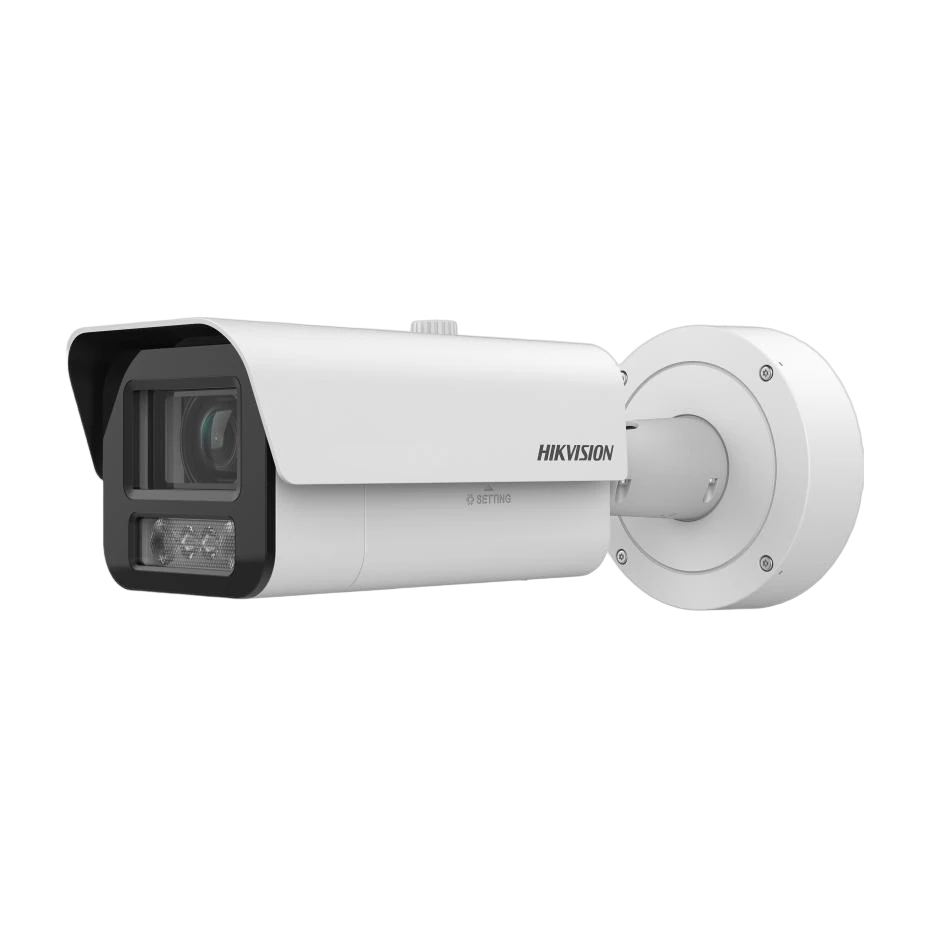

The Hikvision iDS-2CD7A47G0-XZHS(Y) is a 4 MP DeepinView varifocal bullet network camera designed for reliable surveillance with advanced imaging and built-in AI. It supports a 1/1.8″ progressive scan CMOS sensor with maximum resolution of 2688 × 1520, delivering high-quality detail for day and night scenes. For low-light performance, the camera uses DarkFighterS technology, combined with hybrid supplemental illumination (IR and white light) up to 50 m, to maintain usable visibility in challenging conditions.

To handle difficult lighting, the camera includes 140 dB WDR (Wide Dynamic Range), helping produce clearer images against strong backlight. It also uses efficient H.265+ compression to reduce bandwidth and storage requirements, while offering five video streams to suit a wide range of recording and viewing setups. Audio is supported with mono sound.

Beyond core video performance, the camera includes embedded deep learning capabilities such as Face Capture, Perimeter Protection (line crossing, intrusion, region entrance/exit), Multi-Target-Type Detection (face, human, vehicle), Queue Management, Regional People Counting, On/Off Duty Detection, Heat Map reporting, and Hard Hat Detection. The camera is built for harsh environments with IP67 weather resistance and IK10 vandal resistance, making it suitable for outdoor installations.

Key Features

  • 4 MP (2688 × 1520) high-quality imaging
  • DarkFighterS low-light performance
  • 140 dB WDR for clear imaging in strong backlight
  • H.265+ compression to save bandwidth and storage
  • 5 streams for wide application compatibility
  • Hybrid supplemental light (IR and white light) up to 50 m; smart supplement light enabled
  • Embedded deep learning: Face Capture (best shot/quick shot, up to 120 faces detected simultaneously)
  • Perimeter Protection: line crossing, intrusion, region entrance, region exiting with reduced false alarms
  • Queue Management and Regional People Counting with reporting and export options
  • Heat Map (space heat map and time heat map line chart)
  • Hard Hat Detection (up to 30 targets simultaneously)
  • Varifocal lens 2.8 to 12 mm with motorized pan/tilt/rotation ranges
  • e-PTZ support (patrol and auto tracking settings)
  • Weather and vandal resistance: IP67 and IK10
  • Network storage support (NAS with NFS/SMB/CIFS) and memory card support up to 1 TB

Watch Product Videos

Watch real demos, setup guides, night-vision tests, and feature highlights for this model.

Downloads

Access datasheets, manuals, and user guides for this product.

File
Action
Data Sheet PDF
Data Sheet PDF

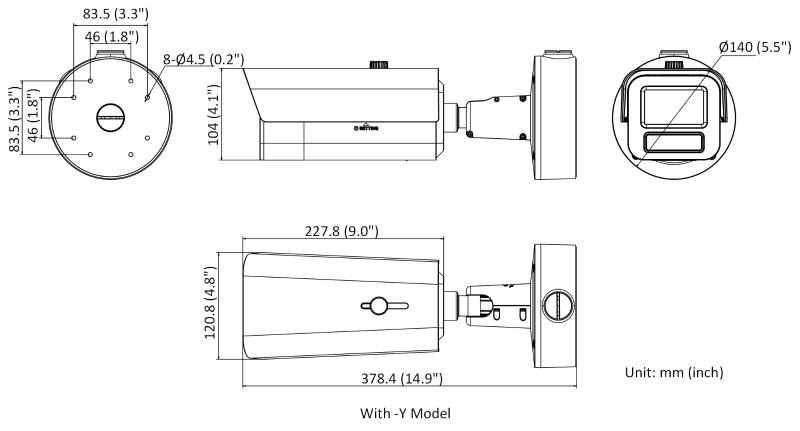

Dimensions PNG

Where to Find This Product

View trusted supplier listings, product references, and availability status for this model.

Dynamic CCTV Code: IDS-2CD7A47G0-XZHS-Y-
Available
