IDS-2CD7T47G0-XHS(Y) Hikvision Bullet IP Camera
Product Overview

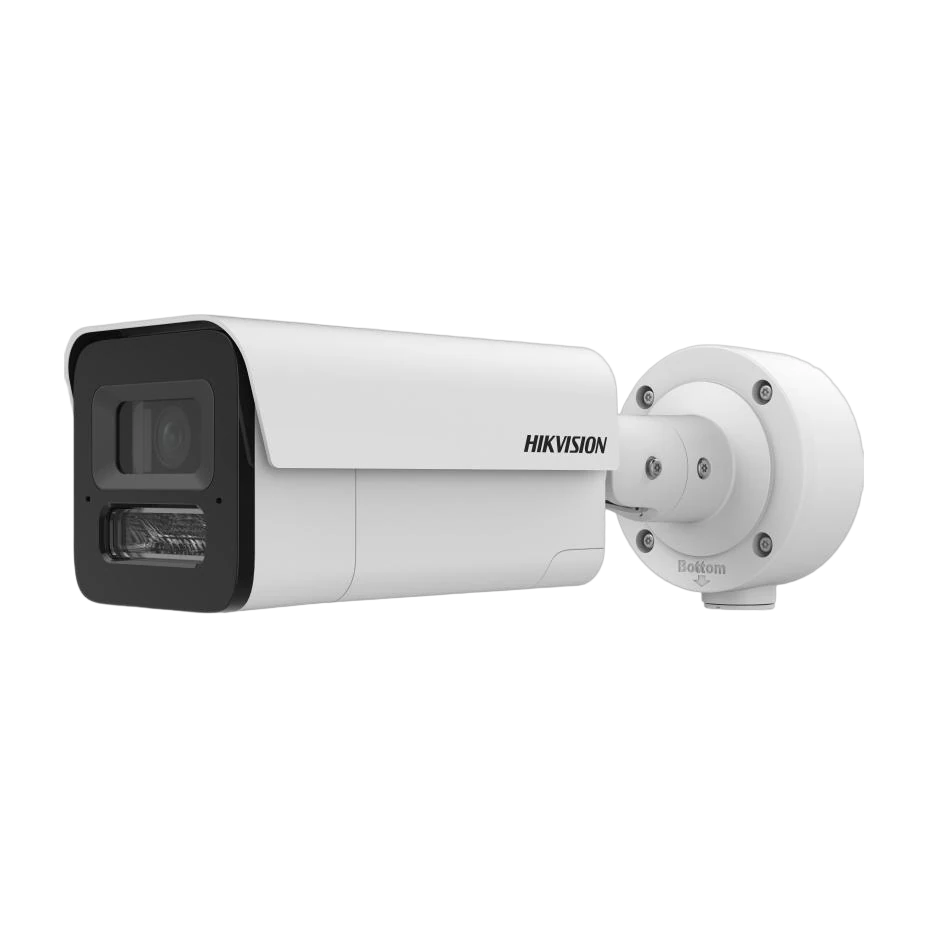

The Hikvision iDS-2CD7T47G0-XHS(Y) is a 4MP fixed bullet network camera designed for reliable perimeter and people-centric monitoring. It uses a 1/1.8″ Progressive Scan CMOS sensor to deliver maximum 2688×1520 resolution, with strong low-light performance supported by the DarkfighterS technology. To improve visibility in challenging lighting, the camera includes 140 dB WDR for clear imaging against harsh backlight.
For flexible deployment, the camera supports multiple streaming profiles (up to five streams) and efficient H.265+ compression to help reduce bandwidth and storage requirements. The embedded computing platform supports HEOP (Hikvision Embedded Open Platform) and allows importing third-party applications using HEOP 2.0 OpendevSDK, giving integrators additional processing and application options. HEOP resources include 1.5 TOPS computing power, 40 MB system memory, 350 MB smart RAM, and 1 GB eMMC storage.
Deep learning smart functions include Face Capture, Perimeter Protection (line crossing, intrusion, region entrance/exit), Queue Management, On/Off Duty Detection, and Heat Map reporting. It also supports people counting with real-time people flow data and face-alarm reporting. The camera offers hybrid supplemental lighting (IR 850 nm and white light) up to 40 m, and has an IP67 weather-resistant and IK10 vandal-proof rugged design.
Key Features
- 4 MP resolution (max. 2688×1520)
- DarkfighterS low-light performance
- 140 dB WDR for strong backlight scenes
- DarkfighterS hybrid illumination: IR 850 nm and white light (up to 40 m)
- Efficient H.265+ compression for bandwidth/storage saving
- 5 streams for flexible use cases
- Deep learning: Face Capture (up to 60 faces simultaneously)
- Deep learning perimeter protection: line crossing, intrusion, region entrance, region exiting
- Queue Management with reports and raw data export
- On/Off Duty detection and absence detection
- Heat map (space heat map and time heat map line chart)
- People counting with real-time entering/exiting flow data
- HEOP 2.0 OpenDevSDK for third-party application support
- HEOP resources: 1.5 TOPS computing power, 40 MB memory, 350 MB smart RAM, 1 GB eMMC
- IP67 (water/dust resistant) and IK10 vandal proof
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
The maximum resolution is 2688 × 1520.
Yes. It uses DarkfighterS technology and supports hybrid supplemental lighting (IR 850 nm and white light).
It supports Wide Dynamic Range (WDR) of 140 dB.
The supplement light range is up to 40 m.
Face Capture, Perimeter Protection, Queue Management, On/Off Duty Detection, Heat Map, and People Counting are included.
Yes. It is rated IP67 and IK10.
