IDS-2ZMN3207N(B) Hikvision PTZ Dome IP Camera
Product Overview

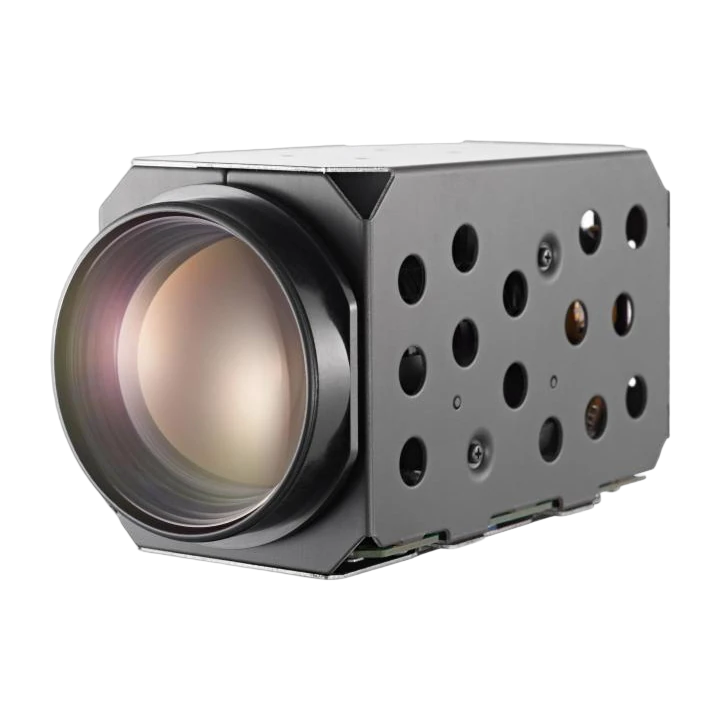

The Hikvision iDS-2ZMN3207N(B) is a 2MP network PTZ module camera designed for integration with PTZ camera systems and positioning applications. It uses a 1/2.8-inch CMOS progressive-scan sensor and supports video resolutions up to 1920×1080. With a 32× optical zoom lens (5.9 mm to 188.8 mm), the module provides detailed viewing for both wide-area coverage and long-distance observation. The camera’s minimum illumination is as low as 0.05 Lux (Color, F1.5, AGC ON) and 0.01 Lux (B/W, F1.5, AGC ON). For image quality, it includes WDR up to 120 dB, EIS with an integrated gyroscope, 3D DNR, BLC, and HLC to enhance clarity in challenging lighting conditions. Smart detection features include intrusion detection, line crossing detection, region entry/exit detection, unattended baggage detection, and object removal detection. The module also supports face capture. For efficiency, it uses H.265 compression technology to reduce bandwidth while maintaining image quality. Connectivity and scalability are supported through multiple network protocols (IPv4/IPv6, HTTP/HTTPS, RTSP/RTP/RTCP, ONVIF, and Hik-Connect), an open API, and an interface designed for extended functionality and easy connection to PTZ and positioning systems. Low power consumption and compact size help make it suitable for network-based surveillance deployments.
Key Features
- 2MP network module camera with CMOS 1/2.8-inch progressive-scan sensor
- Max resolution 1920×1080
- 32× optical zoom lens (5.9 mm to 188.8 mm)
- Minimum illumination: 0.05 Lux (Color, F1.5, AGC ON); 0.01 Lux (B/W, F1.5, AGC ON)
- ICR day/night with IR cut filter (automatic)
- WDR 120 dB, EIS (integrated gyroscope), HLC, BLC, 3D DNR
- Smart events: intrusion, line crossing, region entry/exit, unattended baggage, object removal
- Face capture support
- Fast and accurate focusing
- H.265 compression for efficient bandwidth usage
- Multiple interfaces including Ethernet, RS-485, audio/alarm I/O, and microSD/SDXC storage up to 256 GB
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
It uses a 1/2.8-inch CMOS progressive-scan sensor and supports resolution up to 1920×1080.
It offers 32× optical zoom with a focal length range of 5.9 mm to 188.8 mm.
Minimum illumination is 0.05 Lux (Color, F1.5, AGC ON) and 0.01 Lux (B/W, F1.5, AGC ON).
Yes. It has an ICR day/night switch and an IR cut filter with automatic switching.
It supports intrusion detection, line crossing detection, region entry/exit detection, unattended baggage detection, and object removal detection.
It supports microSD/microSDHC/microSDXC onboard storage up to 256 GB, and network connectivity via Ethernet with supported protocols such as ONVIF and RTSP.
