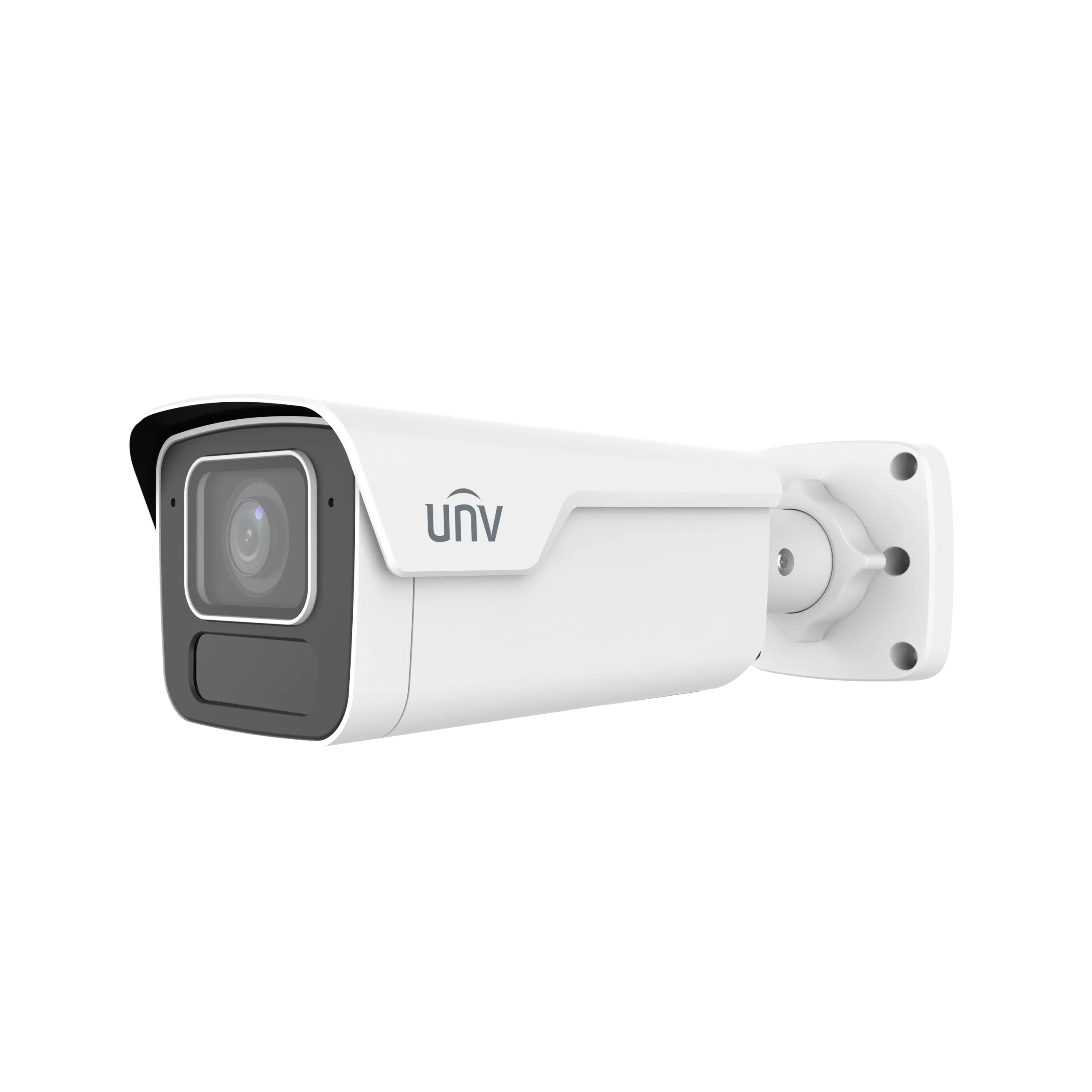

IPC2B24SA-AHDZK-PI-I1 UNV Bullet IP Camera
Product Overview
The UNV IPC2B24SA-AHDZK-PI-I1 is a 4MP LightHunter IR network bullet camera designed for clear, smooth surveillance with advanced low-light performance. It uses a 1/2.8″ CMOS sensor to deliver up to 2688 × 1520 at 60 fps for detailed live viewing while keeping motion smooth. The motorized lens with P-iris supports accurate exposure control, and the camera features 130 dB optical WDR to help maintain image detail in challenging lighting conditions. For day/night operation, it includes an IR-cut filter with auto switch (ICR) and supports illumination up to 80 m, with auto/manual IR on/off control. Video compression includes Ultra 265, H.265, H.264, and MJPEG to support efficient recording and streaming. The camera includes smart intrusion prevention with false alarm filtering (cross line, intrusion, enter/leave area detection) as well as people counting for people flow counting and crowd density monitoring. Additional features include edge storage via MicroSD up to 512 GB, triple-stream video, and rugged protection rating of IP67 and IK10—making it suitable for reliable outdoor installations.
Key Features
- 4MP (Max Resolution) with 2688 × 1520@60 fps main stream
- LightHunter technology for low-light image quality
- Up to 130 dB optical WDR
- Motorized lens with P-iris supports accurate exposure control
- IR-cut filter with auto switch (ICR)
- Illuminator: IR illumination distance up to 80 m
- Smart intrusion prevention with false alarm filtering (cross line, intrusion, enter/leave area)
- People counting with people flow counting and crowd density monitoring
- IP67 and IK10 protection
- DC 12 V and PoE (IEEE 802.3af) power supply
- Alarm I/O: 1/1, audio I/O: 1/1
- Edge storage: MicroSD up to 512 GB
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Our selected suppliers are drawing a blank on this camera right now. Please check online - you may still spot one in the wild.
Frequently Asked Questions
Find quick answers to common product questions.
IPC2B24SA-AHDZK-PI-I1.
Max resolution is 4 MP, with main stream up to 2688 × 1520 at max. 60 fps.
LightHunter technology ensures ultra-high image quality in low-light environment.
Yes. IR illumination distance is up to 80 m.
Smart intrusion prevention with false alarm filtering (cross line, intrusion, enter area, leave area) and people counting (people flow counting and crowd density monitoring).
IP67 and IK10.
