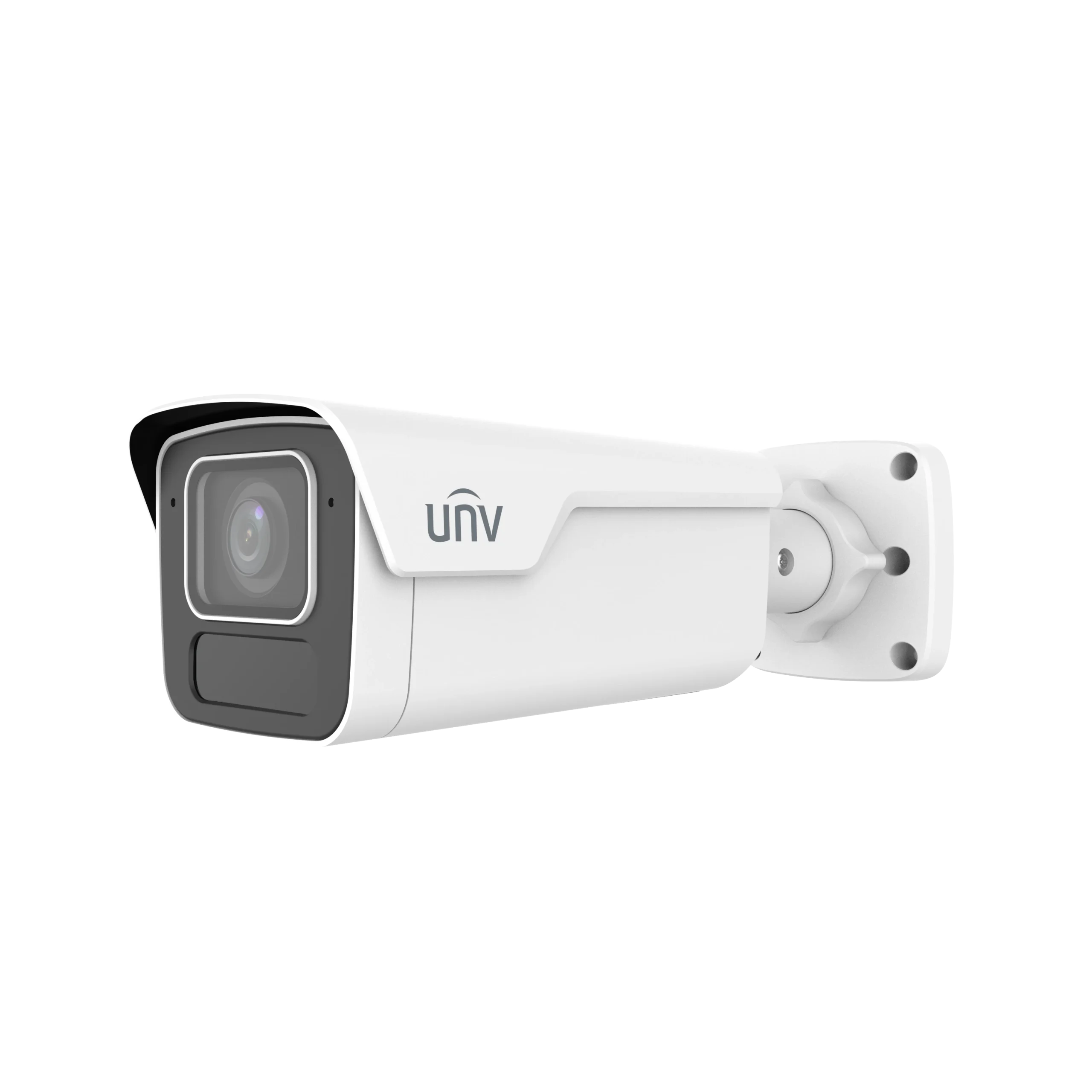

IPC2B24SA-AHDZK-PI-LS-I2A UNV Bullet IP Camera
Product Overview
The UNV IPC2B24SA-AHDZK-PI-LS-I2A is a 4MP WDR LightHunter IR bullet network camera designed for clear, detailed monitoring day and night. It uses a 1/1.8″ CMOS sensor to deliver up to 2688 × 1520@60 fps in the main stream for ultra high definition live video. Featuring motorized lens support with P-iris for accurate exposure control, the camera is built to handle challenging scenes with up to 130 dB optical WDR. Wise-ISP technology helps comprehensively improve image quality.
For night performance, the camera supports IR illumination with an illumination distance of up to 80 m at 850 nm, using auto/manual IR on/off control. The day/night function uses an IR-cut filter with auto switch (ICR). For added reliability in cold weather, the camera includes a built-in heater and supports normal startup at temperatures as low as -40°C.
Smart functionality includes Smart intrusion prevention (cross line, intrusion, enter area, leave area detection with false alarm filtering), people counting (people flow and crowd density monitoring), and road traffic monitoring that can capture car license picture and collect other car information when the car passes tripwire. The camera is rated IP67 and IK10 and supports DC 12 V or PoE (IEEE 802.3af).
Key Features
- 4 MP max resolution
- 1/1.8″ CMOS sensor
- 2688 × 1520@60 fps main stream
- Motorized lens with P-iris for accurate exposure control
- Wise-ISP technology for comprehensive image quality improvement
- Up to 130 dB optical WDR
- Built-in heater supports normal startup at -40°C
- IR illumination up to 80 m (850 nm)
- Smart intrusion prevention with false alarm filtering (cross line, intrusion, enter area, leave area)
- People counting (people flow counting and crowd density monitoring)
- Road traffic monitoring with tripwire (license plate picture and car information collection)
- IP67, IK10
- DC 12 V and PoE (IEEE 802.3af) power supply
- Alarm I/O: 1/1, audio I/O: 1/1
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Our selected suppliers are drawing a blank on this camera right now. Please check online - you may still spot one in the wild.
Frequently Asked Questions
Find quick answers to common product questions.
The camera supports a max resolution of 4 MP.
It uses IR illumination with an illumination distance of up to 80 m at 850 nm.
Yes, it supports up to 130 dB optical WDR.
It includes a built-in heater and supports normal startup at temperatures as low as -40°C.
It supports cross line, intrusion, enter area, and leave area detection, including false alarm filtering.
It supports DC 12 V and PoE (IEEE 802.3af).
