IPC3535LB-ADZK-H UNV Dome IP Camera
Product Overview

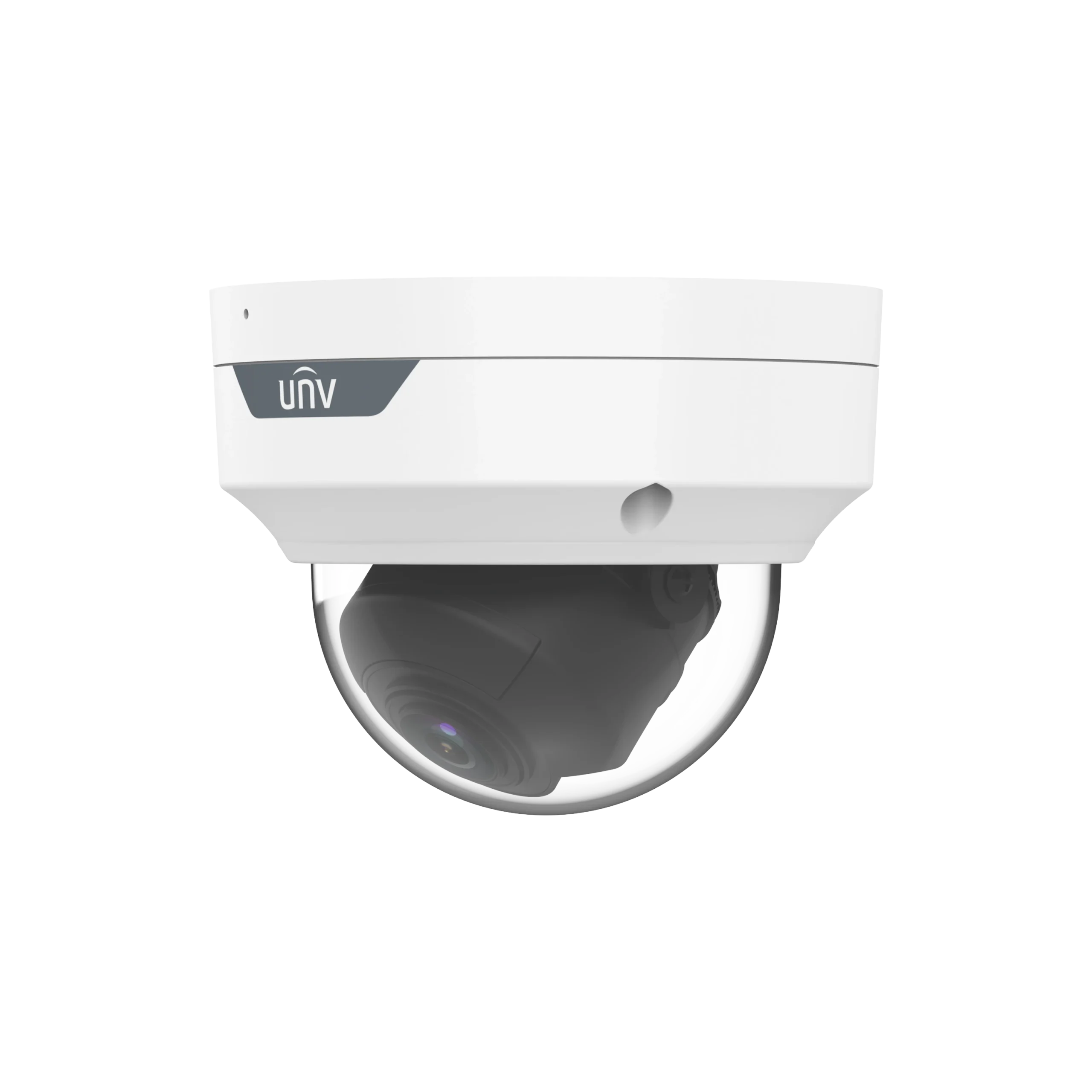

The UNV IPC3535LB-ADZK-H is a Uniview Easy Series 5MP HD IR VF dome network camera designed for entry-level needs such as homes and small shops. It combines a 1/2.7″ CMOS sensor with high-resolution video performance, supporting 5MP (2880 × 1620) at up to 25 fps and 4MP, 3MP, and 1080P modes. The camera uses Ultra 265, H.265, H.264, and MJPEG compression for efficient streaming, and includes 120 dB true WDR to help maintain clear image detail in strong light scenes. For convenience in installation, it supports 9:16 corridor mode and includes 3-axis adjustment. For night monitoring, it features Smart IR with an IR illumination distance up to 40 m (850 nm). Local recording is supported with MicroSD up to 512 GB, and it also supports PoE power supply. Built for durability, the camera offers IP67 protection and IK10 protection, making it suitable for outdoor use and harsh environments.
Key Features
- 5 MP HD image with 1/2.7″ CMOS sensor
- Smart IR, up to 40 m IR distance
- 120 dB true WDR
- Supports 9:16 corridor mode
- Ultra 265, H.265, H.264, MJPEG
- MicroSD, up to 512 GB
- IP67 protection
- IK10 protection
- Supports PoE power supply
- 3-axis
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search now
Frequently Asked Questions
Find quick answers to common product questions.
It supports up to 5 MP (2880 × 1620).
Yes. It has IR illumination with Smart IR up to 40 m and 0 Lux with IR.
Color: 0.001 Lux (F1.6, AGC ON).
MicroSD up to 512 GB, and network storage via ANR, NAS (NFS).
Yes, it supports PoE power supply (IEEE 802.3af).
IP67 protection and IK10 protection.
