UAC-B125-APF28LM UNV Bullet Analogue Camera
Product Overview

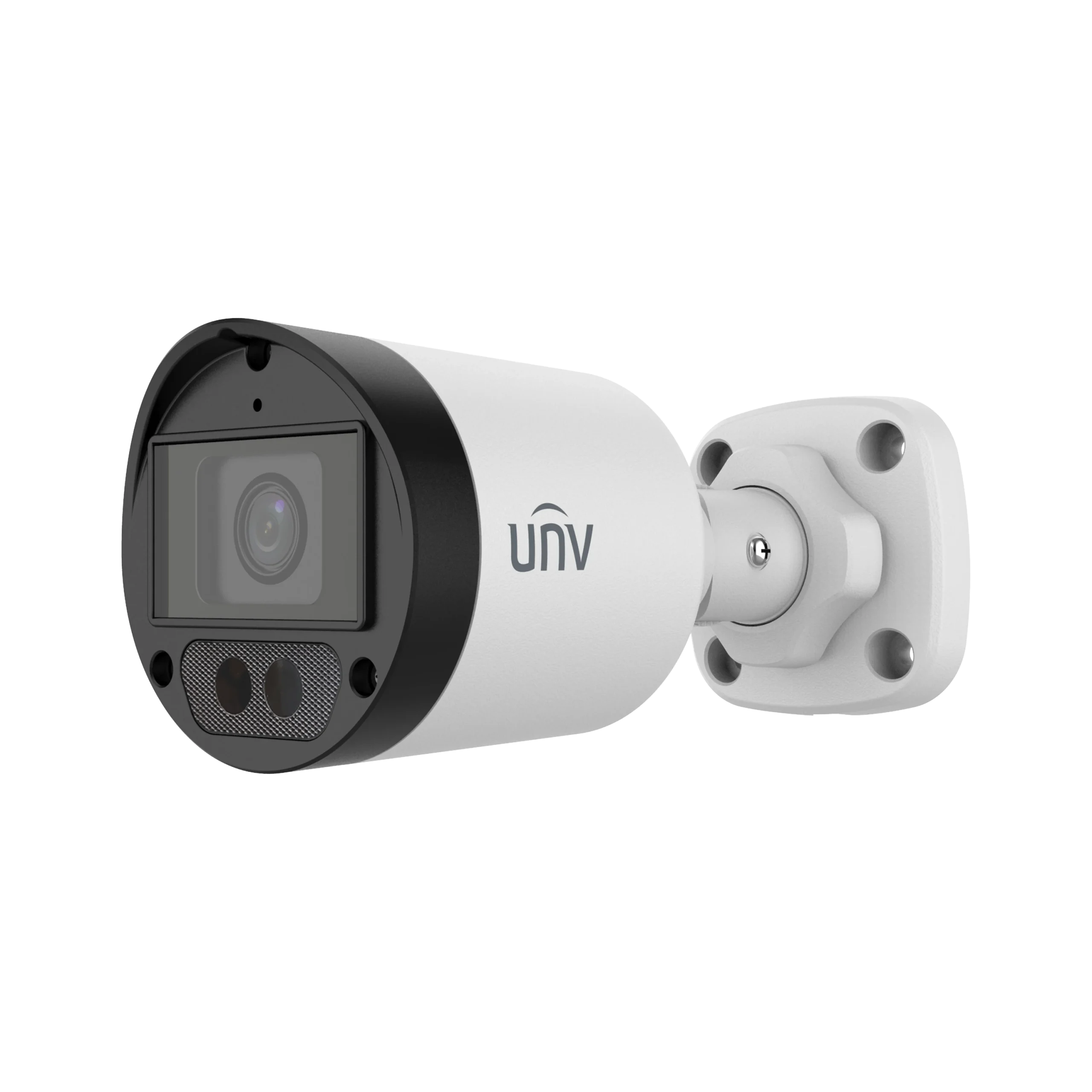

The UNV UAC-B125-APF28LM is a 5MP fixed bullet analog camera from the Whale series, designed for reliable surveillance with high-quality imaging and built-in audio. It supports multiple analog video formats including TVI/AHD/CVI/CVBS, and offers PoC power supply support for convenient installation with PoC series XVRs. For low-light performance, the camera features LightHunter monitoring with a high-sensitivity sensor, along with IR illumination using two built-in IR illuminators. The illuminator provides an illumination distance up to 40m to support night-time monitoring. For practical deployment, it includes an IR-cut filter with auto-switch (ICR), and supports day/night operation with Auto/Day/Night modes. The camera includes an OSD configuration menu with easy operation, supporting 11 languages. Additionally, it offers 180° horizontal and 180° vertical flip for flexible mounting. With an IP67 waterproof and dustproof design and a metal + plastic body, the UAC-B125-APF28LM is built for dependable outdoor use. A built-in microphone enables high quality audio transmission via coaxial cables when used with compatible PoC setups.
Key Features
- 5MP resolution
- TVI/AHD/CVI/CVBS
- Supports IR-cut filter with auto-switch (ICR)
- LightHunter monitoring with high-sensitivity sensor
- Two IR illuminators
- Illumination distance up to 40m
- 180° horizontal flip and 180° vertical flip
- OSD configuration menu (11 languages)
- IP67 waterproof and dustproof design
- Built-in microphone for audio transmission via coaxial cables
- Support PoC power supply
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
Find quick answers to common product questions.
The camera has a max resolution of 5 MP.
It supports TVI/AHD/CVI/CVBS.
Yes. It supports an IR-cut filter with auto-switch (ICR) and three day/night modes: Auto, Day, Night.
It uses LightHunter monitoring with a high-sensitivity sensor.
The illumination distance is 40m.
Yes. It supports PoC power supply, and audio via coaxial cables is only available when used with PoC series XVRs.
