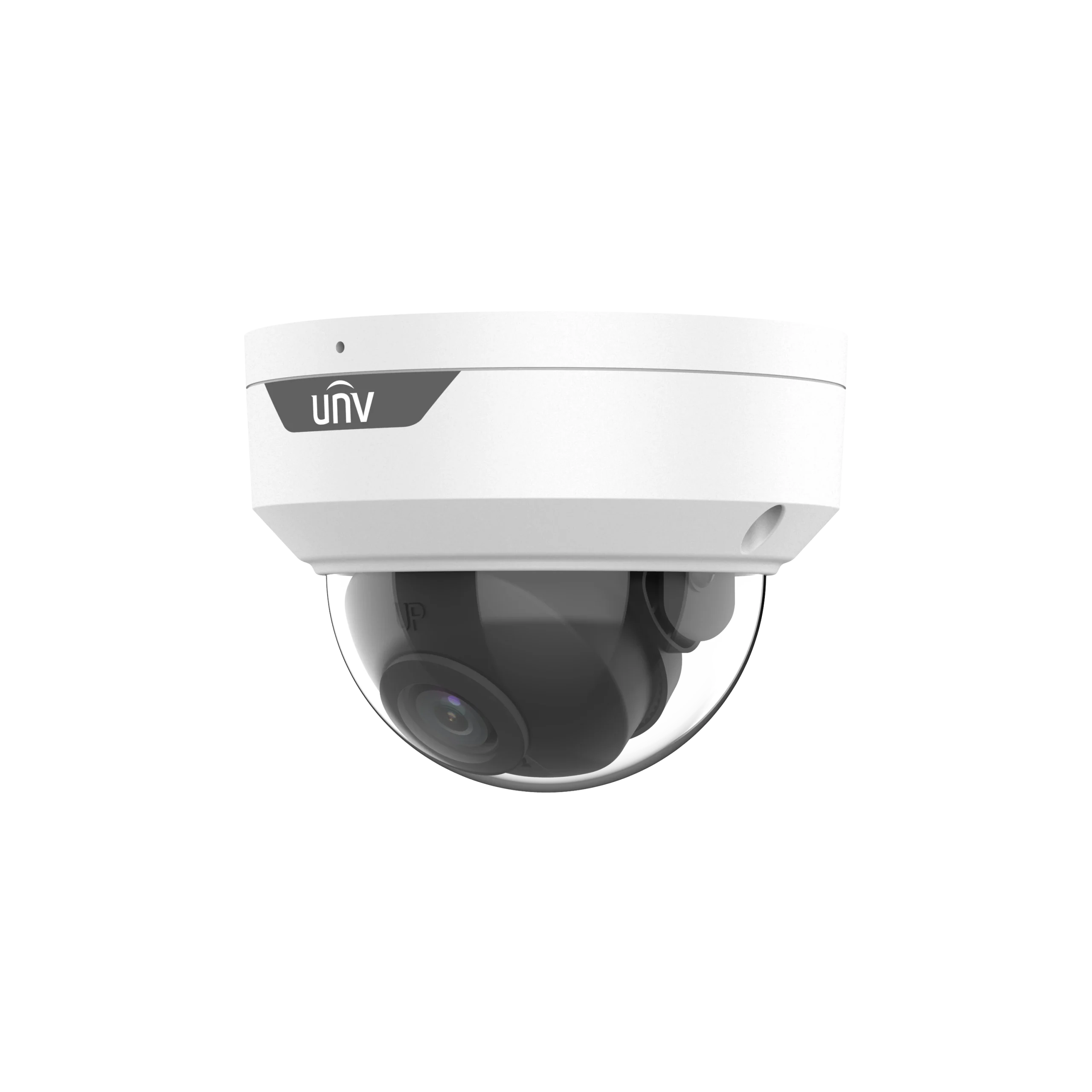

UAC-D122-APF28M UNV Dome Analogue Camera
Product Overview
The UNV UAC-D122-APF28M is a 2MP fixed dome analogue camera designed for reliable monitoring with bright imaging in low-light conditions. It features LightHunter technology with a high-sensitivity sensor to help deliver clearer visuals when light is limited. The camera supports IR monitoring using a built-in IR illuminator, with an illumination distance of up to 30m, making it suitable for day/night surveillance.
For improved image quality, the camera includes 3D noise reduction technology for clean and sharp images, as well as DWDR (DWDR) for better contrast in challenging lighting. It also supports an IR-cut filter with auto-switch (ICR) for switching between day and night modes. Installation flexibility is supported by multiple mounting options and a 180° horizontal and vertical flip capability, along with an OSD configuration menu available in 11 languages.
For connectivity and convenience, the camera outputs video via BNC with TVI/AHD/CVI/CVBS support and supports PoC power supply. A built-in microphone supports high quality audio transmission via coaxial cables (PoC audio only available with PoC series XVRs). The camera is water and dust resistant (IP67) and vandal-resistant (IK10), and it also supports defog.
Key Features
- High quality imaging with 2MP resolution
- LightHunter monitoring with high-sensitivity sensor
- One IR illuminator with illumination distance 30m
- Supports IR-cut filter with auto-switch (ICR)
- 3D noise reduction technology delivers clean and sharp images
- DWDR
- Supports defog
- Built-in microphone for high quality audio transmission via coaxial cables (PoC audio only available with PoC series XVRs)
- Supports 180° horizontal/vertical flip
- OSD configuration menu in 11 languages
- Water and dust resistant (IP67) and vandal-resistant (IK10)
- Support PoC power supply
- Supports TVI/AHD/CVI/CVBS
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Our selected suppliers are drawing a blank on this camera right now. Please check online - you may still spot one in the wild.
Frequently Asked Questions
Find quick answers to common product questions.
It has a maximum resolution of 2 MP.
Yes, it features LightHunter monitoring with a high-sensitivity sensor.
It has one IR illuminator with an illumination distance of 30m.
Yes. It supports an IR-cut filter with auto-switch (ICR) and has day/night modes (Auto, Day, Night).
Yes, it includes a built-in microphone for high quality audio transmission via coaxial cables (PoC audio only available when used with PoC series XVRs).
It is water and dust resistant (IP67) and vandal-resistant (IK10).
