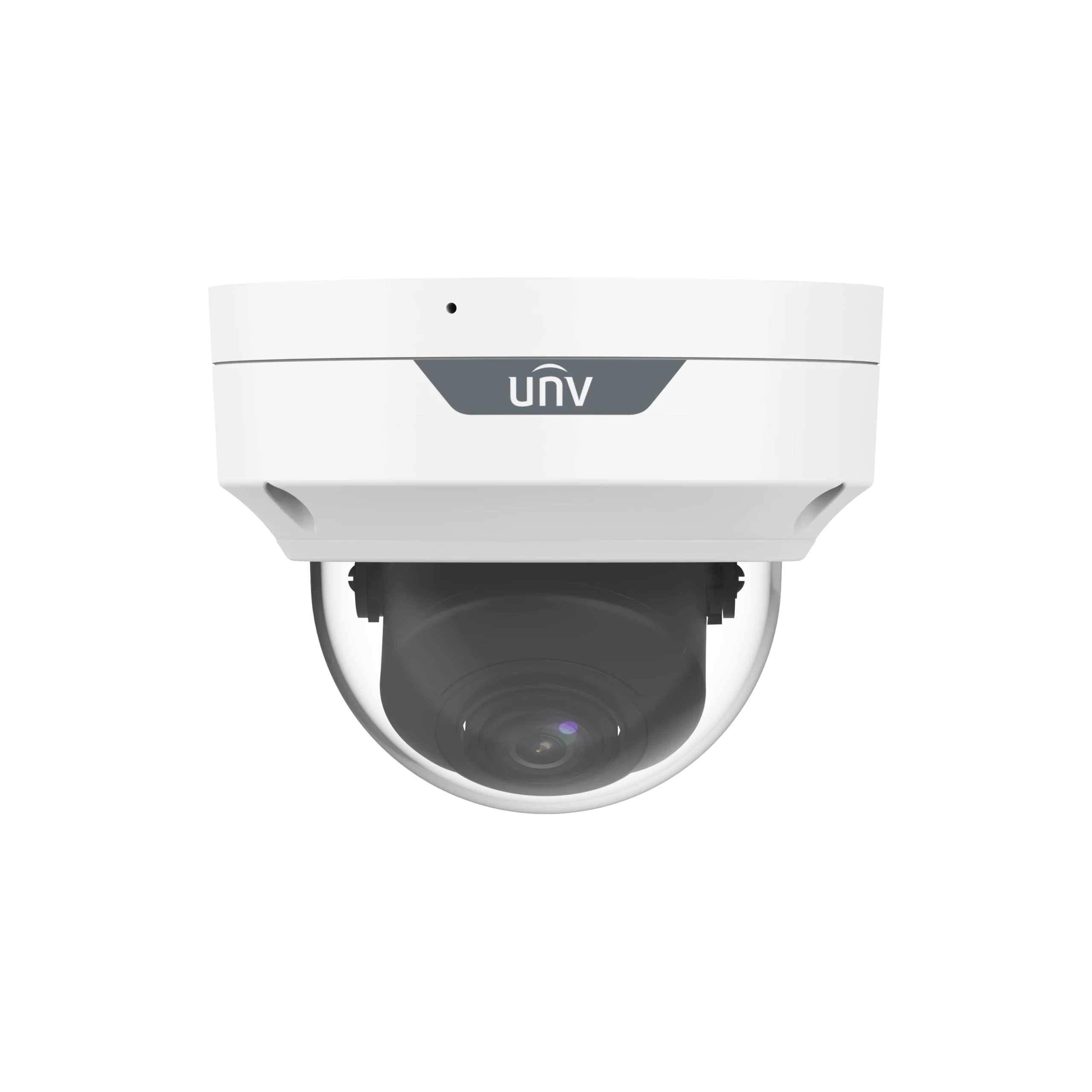

UAC-D315-ADZLM UNV Dome Analogue Camera
Product Overview
The UNV UAC-D315-ADZLM is a 5MP Whale Series dome analog camera designed to deliver high quality imaging in low-light conditions. It features a LightHunter monitoring approach with a high sensitivity sensor, helping produce clear surveillance images even when illumination is limited. The camera supports an IR cut filter with auto switch (ICR) and includes two IR illuminators with an illumination distance of up to 30m for night monitoring.
For flexible installation and coverage, the camera supports a 2.8mm-12mm motorized lens and offers multiple video output formats including TVI/AHD/CVI/CVBS. On top of core image quality features, it supports 3D noise reduction for clean and sharp images and provides exposure and day/night settings with options for Auto/Day/Night operation.
For durability, the camera is water and dust resistant (IP67) and vandal resistant (IK10), making it suitable for demanding environments. Additional functionality includes OSD configuration menu operation, 180° horizontal and vertical flip support, built-in microphone for high quality audio transmission via coaxial cables, and an 11-language OSD menu.
Key Features
- High quality imaging with 5MP resolution
- 2.8mm-12mm motorized lens
- TVI/AHD/CVI/CVBS
- Supports IR cut filter with auto switch (ICR)
- LightHunter monitoring with high sensitivity sensor
- 3D noise reduction technology delivers clean and sharp images
- Supports 180° horizontal flip, 180° vertical flip
- OSD configuration menu, easy to operate
- Water and dust resistant (IP67) and vandal resistant (IK10)
- Built in microphone for high quality audio transmission via coaxial cables
- Two IR illuminators; illumination distance 30m
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
Find quick answers to common product questions.
The camera supports a max resolution of 5 MP.
It uses a 2.8 to 12 mm lens.
Yes. It includes two IR illuminators with an illumination distance of 30m, and it supports IR on (0 lux).
TVI/AHD/CVI/CVBS (via BNC).
Yes. It has a built-in mic for high quality audio transmission via coaxial cables.
It is water and dust resistant (IP67) and vandal resistant (IK10).
