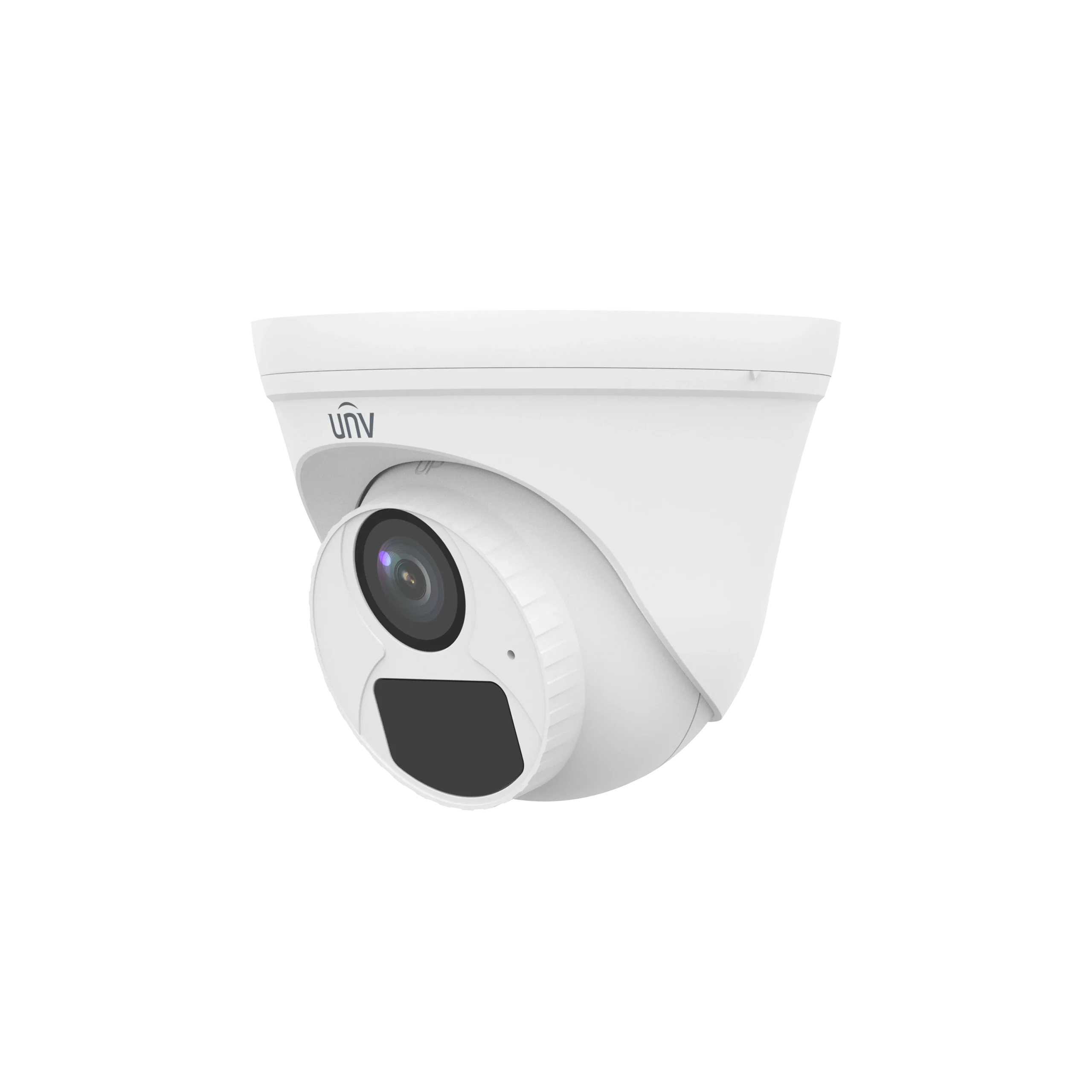

UAC-T115-AF28(40) UNV Turret Analogue Camera

The UNV UAC-T115-AF28(40) is a 5MP fixed IR turret analog camera designed for reliable day/night monitoring with an IP67 waterproof and dustproof housing. It provides high quality 5MP imaging (Max Resolution 5 MP) using a 1/2.7″ CMOS sensor, and features a built-in IR illuminator with an illumination distance of up to 20m for effective night visibility. The camera supports multiple analog video formats including TVI/AHD/CVI/CVBS, making it compatible with common analog systems. For installation and flexibility, it supports IR-cut filter with auto-switch (ICR), plus 180° horizontal and 180° vertical flip options, and includes an OSD configuration menu with 11 languages for easier setup. Audio is supported via a built-in microphone, enabling high quality audio transmission through coaxial cables. With a low minimum illumination rating of 0.02 lux (F2.0, AGC ON) and 0 lux (IR ON), it’s suitable for environments where clear imaging is required after dark. The camera is built for long-term operation with an IR illuminator lifetime of at least 60,000 hours, and it includes surge protection for power and video interfaces.
