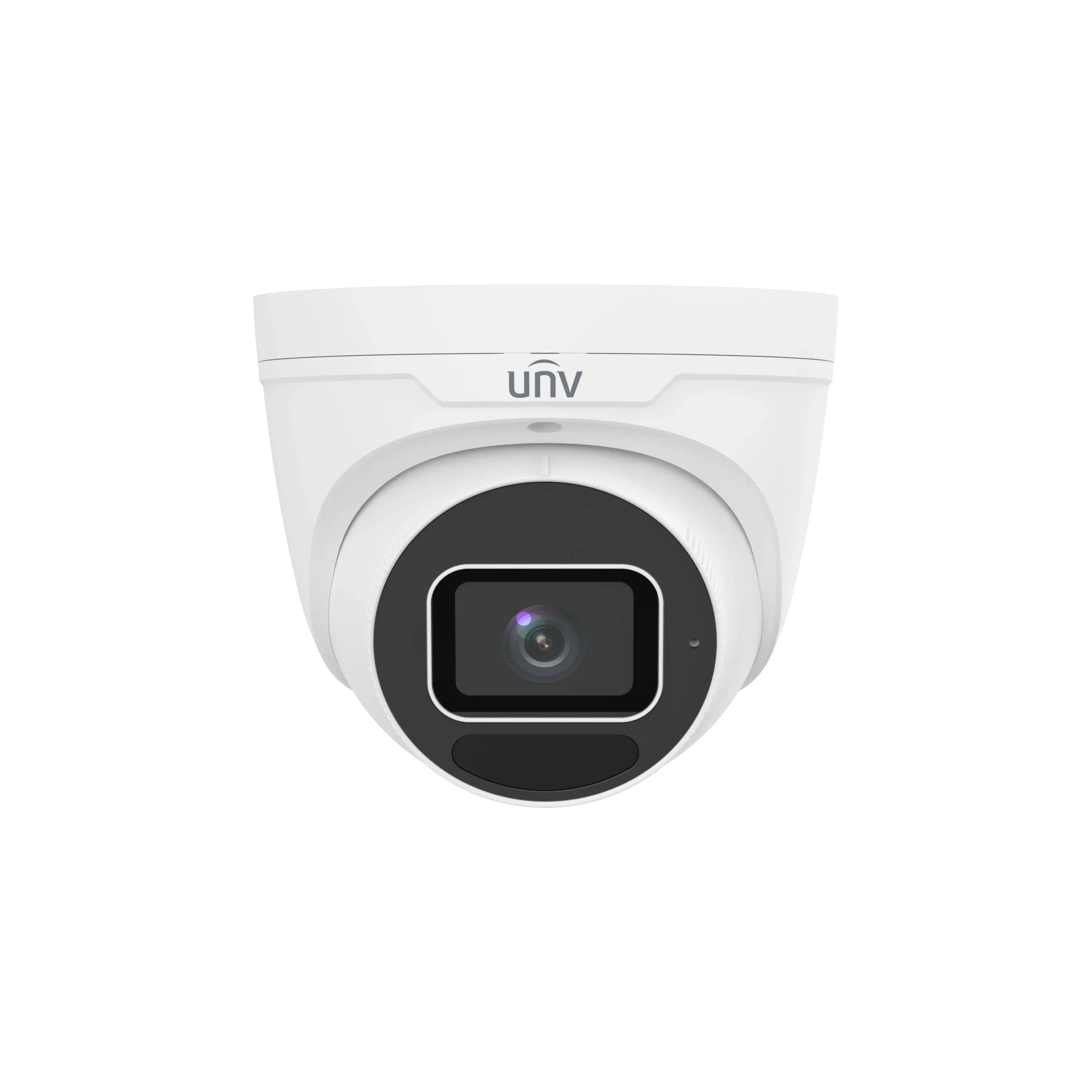

UAC-T315-ADPZMS UNV Turret Analogue Camera
Product Overview
UNV UAC-T315-ADPZMS is a 5MP PoC VF turret analog camera from the Uniview Whale series, designed to deliver high quality imaging and reliable outdoor performance. It supports a motorized 2.8mm to 12mm varifocal lens, letting you adjust the field of view for different scene requirements. For low-light monitoring, the camera uses LightHunter technology with a high sensitivity sensor and includes IR illumination. The camera features an IR cut filter with auto switch (ICR) to support day/night operation. Image processing includes 2D/3D noise reduction and 120 dB WDR for improved visibility in challenging lighting conditions. The device includes Smart IR, plus exposure modes such as Global, BLC, HLC, and WDR, and day/night modes (Auto/Day/Night). For installation and usability, it offers OSD configuration menu with 11 language options and supports 180° horizontal and vertical flip. Built for durability, it uses a metal casing and provides IP67 waterproof and dustproof protection. Audio is supported via a built-in microphone and the camera supports PoC power supply. Outputs support TVI/AHD/CVI/CVBS via BNC, making it suitable for flexible analog deployments.
Key Features
- High quality imaging with 5MP resolution
- 2.8mm-12mm motorized lens
- LightHunter monitoring with high sensitivity sensor
- IR cut filter with auto switch (ICR)
- Supports IR illumination with two IR illuminators
- Illumination distance up to 40m
- 3D noise reduction technology delivers clean and sharp images
- Supports 180° horizontal flip, 180° vertical flip
- OSD configuration menu, easy to operate
- OSD configuration menu in 11 languages
- Built in microphone for high quality audio transmission via coaxial cables
- Support PoC power supply
- IP67 waterproof and dustproof design
- PoC power supply support
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
Find quick answers to common product questions.
It supports a maximum resolution of 5 MP.
Yes, it features LightHunter monitoring with a high sensitivity sensor.
It has two IR illuminators with an illumination distance of up to 40m.
Yes. It supports an IR cut filter with auto switch (ICR) and has day/night modes: Auto (default), Day, Night.
It uses a 2.8 to 12 mm motorized lens.
Yes, it supports PoC power supply.
