DS-2CD2143G2-IU Hikvision Dome IP Camera
Product Overview

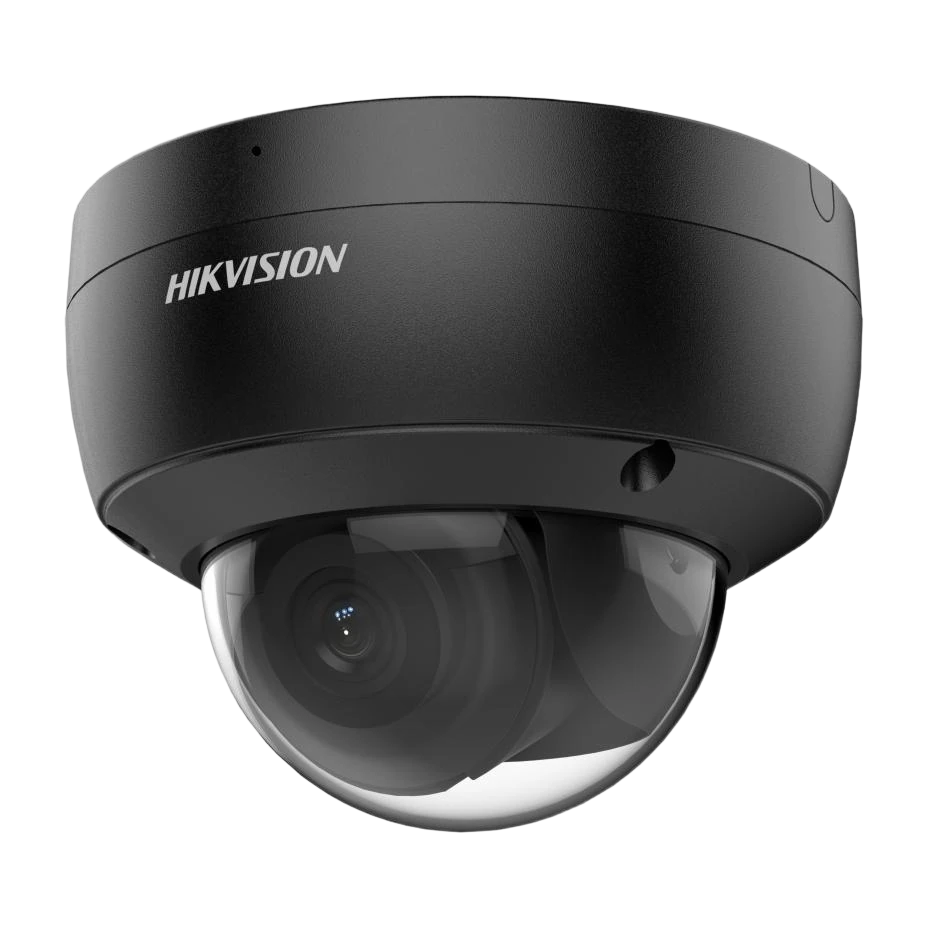

The Hikvision DS-2CD2143G2-IU is a 4 MP fixed dome network camera designed for effective day and night surveillance with intelligent target-focused analytics. It uses a 1/3″ progressive scan CMOS sensor with a maximum resolution of 2688 × 1520, providing high-detail imaging for monitoring entrances, corridors, and outdoor spaces. For challenging lighting conditions, the camera supports 120 dB WDR to deliver clear visibility against strong backlight. Video can be efficiently compressed using H.265+ for reduced bandwidth and storage usage.
Equipped with a built-in microphone, the DS-2CD2143G2-IU enables real-time audio security alongside video, making it suitable for audio/video recording and deterrence applications. For low-light performance, it includes IR illumination (850 nm) with an IR supplement light range up to 30 m and a smart IR function for more consistent illumination.
The camera features Hikvision AcuSense technology with deep learning algorithms, focusing on human and vehicle target classification to improve alarm efficiency and effectiveness. Smart events include face detection, while perimeter protection supports line crossing and intrusion with alarm triggering by specified target types (human and vehicle).
For durability in demanding installations, it is rated IP67 for water and dust resistance and IK10 for vandal resistance, supporting reliable performance in outdoor and public environments. Recording and storage options include onboard microSD (up to 512 GB) and network storage via NAS.
Key Features
- 4 MP max resolution (2688 × 1520)
- AcuSense deep learning for human and vehicle target classification
- 120 dB WDR for clear images in strong backlight
- Efficient H.265+ compression technology
- Built-in microphone for real-time audio security
- IR supplement light up to 30 m (850 nm) with Smart Supplement Light
- IP67 water/dust resistance and IK10 vandal resistance
- Perimeter Protection: line crossing and intrusion with human/vehicle alarm triggering
- Face detection smart event
- MicroSD onboard storage up to 512 GB
- Network storage support (NAS) and ANR (auto network replenishment)
- Motion detection with target-type alarm triggering (human and vehicle)
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search now
Frequently Asked Questions
2688 × 1520 (4 MP).
Yes. It supports 120 dB WDR.
It uses deep learning to classify human and vehicle targets, improving alarm efficiency and effectiveness.
Yes. It has a built-in microphone for real-time audio security.
Up to 30 m.
IP67 (water/dust resistance) and IK10 (vandal resistance).
